Features: `1.8 V to 5.5 V Single Supply
`±2.5 V Dual Supply
`3 ON Resistance
`0.75 ON Resistance Flatness
`100 pA Leakage Currents
`14 ns Switching Times
`Single 8-to-1 Multiplexer ADG758
`Differential 4-to-1 Multiplexer ADG759
`20-Lead 4 mm* 4 mm Chip Scale Package
`Low Power Consumption
`TTL-/CMOS-Compatible Inputs
`For Functionally Equivalent Devices in 16-Lead TSSOP
`Package, See ADG708/ADG709`1.8 V to 5.5 V Single Supply
`±2.5 V Dual Supply
`3 ON Resistance
`0.75 ON Resistance Flatness
`100 pA Leakage Currents
`14 ns Switching Times
`Single 8-to-1 Multiplexer ADG758
`Differential 4-to-1 Multiplexer ADG759
`20-Lead 4 mm* 4 mm Chip Scale Package
`Low Power Consumption
`TTL-/CMOS-Compatible Inputs
`For Functionally Equivalent Devices in 16-Lead TSSOP
`Package, See ADG708/ADG709Application·Data Acquisition Systems
·Communication Systems
·Relay Replacement
·Audio and Video Switching
·Battery-Powered SystemsPinout
SpecificationsVDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 3.5 V
Analog Inputs2 . . . . . . . . . . VSS 0.3 V to VDD +0.3 V or
30 mA, Whichever Occurs First
Digital Inputs2 . . . . . . . . . . . . . . . 0.3 V to VDD +0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . 100 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . 30 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . 150°C
Chip Scale Package,
JA Thermal Impedance . . . . . . . . . . . . . . . . . 32°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . 215°C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . 220°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2 Overvoltages at EN, A, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
| Sw/Mx Function x # |
(4:1) x 2 |
| Interface Type |
Parallel |
| Available Packages |
CSP |
| Max Analog Signal Range |
Vss to Vdd |
| Ron (Ohms) |
3Ohms |
| Ron Match (Ohms) |
0.4Ohms |
| Cs (OFF) |
13pF |
| Cs, Cd (ON) |
48pF |
| Off Isolation (-dB) |
80dB |
| Bandwidth |
55MHz |
DescriptionThe ADG758 and ADG759 are low voltage, CMOS analog multiplexers comprising eight single channels and four differential channels, respectively.

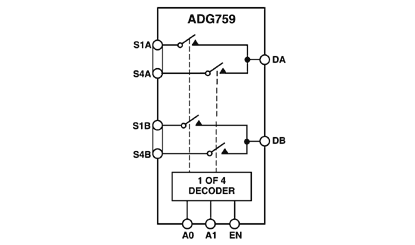

The ADG758 and ADG759 switches one of eight inputs (S1S8) to a common output, D, as determined by the 3-bit binary address lines A0, A1, and A2. The switches one of four differential inputs to a common differential output as determined by the 2-bit binary address lines A0 and A1.
An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched OFF. Low power consumption and an operating supply range of 1.8 V to 5.5 V make the ADG758 and ADG759 ideal for battery-powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels.
ADG758 and ADG759 switches are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low ON resistance and leakage currents. ON resistance is in the region of a few ohms and is closely matched between switches and very flat over the full signal range.
These parts can operate equally well as either multiplexers or demultiplexers and have an input signal range that extends to the supplies. The ADG758 and ADG759 are available in 20-lead chip scale packages.
