Features: +1.8 V to +5.5 V Single Supply
2.5 V (Typ) On Resistance
Low On-Resistance Flatness
3 dB Bandwidth >200 MHz
Rail-to-Rail Operation
10-Lead mSOIC Package
Fast Switching Times
tON 16 ns
tOFF 8 ns
Typical Power Consumption (<0.01 mW)
TTL/CMOS CompatibleApplicationBattery Powered Systems
Communication Systems
Sample-and-Hold Systems
Audio Signal Routing
Audio and Video Switching

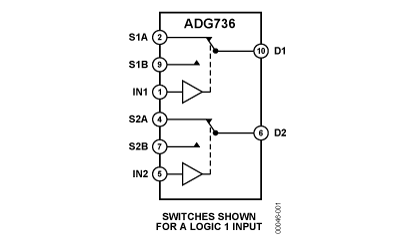

Mechanical Reed Relay ReplacementPinout
Specifications
| Switch Type |
SPDT |
| # Channels |
2 |
| Ron (Ohms) |
2.5Ohms |
| Id, Is (ON) |
10pA |
| Bandwidth |
200MHz |
| t ON |
12ns |
| t OFF |
5ns |
| Supply Voltage |
Single (+3V),Single (+5V) |
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
Analog, Digital Inputs2 . . . . . . . . . . . .0.3 V to VDD +0.3 V or
30 mA, Whichever Occurs First
Continuous Current, S or D . . . . . . . . . . . . . . ... . . .. . . . 30 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . ... . . 100 mA
(Pulsed at 1 ms, 10% Duty Cycle Max)
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . ....... . . 40 C to +85 C
Storage Temperature Range . . . . . . . . . . . . .. 65 C to +150 C
Junction Temperature . . . . . . . . . . . . . . . . . . . .... . . . . . +150 C
m SOIC Package, Power Dissipation . . . . . . . . . . . . . . . 315 mW
q JA Thermal Impedance . . . . . . . . . . . . . . . . ..... . . . . 205 C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) . . . . . . . . . . . . . . . . . . . ...... . . . . +215 C
Infrared (15 sec) . . . . . . . . . . . . . . . . . . . . . . . . . ....... . . +220 C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... . . . . 2 kVDescriptionThe ADG736 is a monolithic device comprising two independently selectable CMOS single pole, double throw (SPDT) switches. These switches are designed using a submicron process that provides low
The ADG736 has the following features including (1)+1.8 V to +5.5 V single supply;(2)low on-resistance flatness;(3)rail-to-rail operation;(4)typical power consumption (<0.01 W);(5)TTL/CMOS compatible.
The ADG736 is a monolithic device comprising two independently selectable CMOS SPDT switches. These switches are designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance, low leakage currents and wide input signal bandwidth.The on resistance profile is very flat over the full analog signal range. This ensures excellent linearity and low distortion when switching audio signals. Fast switching speed also makes the part suitable for video signal switching.The ADG736 can operate from a single +1.8 V to +5.5 V supply, making it ideally suited to portable and battery powered instruments.Each switch conducts equally well in both directions when on and has an input signal range that extends to the power supplies.The ADG736 exhibits break-before-make switching action.
Information of ADG736 furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version of the datasheet(s).
ADG736 Data Sheet
