Product Details

Description



Features:

1.8 V to 5.5 V Single Supply

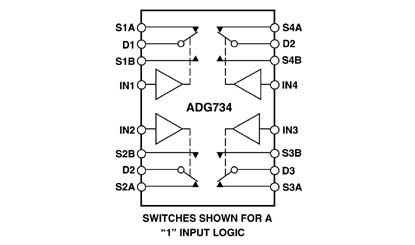

Connection Diagram

ADG734 Diagram




Specifications

(TA = 25°C unless otherwise noted)
VDD to VSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
VSS to GND . . . . . . . . . . . . . . . . . . . . . . . . . .+0.3 V to 3.5 V
Analog Inputs2 . . . . . . . . . . . . VSS 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Digital Inputs . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . .100 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . . 30 mA
Operating Temperature Range
Industrial (A, B Versions) . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . 65°C to +150°C

Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . . .150°C
16-Lead TSSOP, JA Thermal Impedance . . . . . . . 150.4°C/W
20-Lead TSSOP, JA Thermal Impedance . . . . . . . . 143°C/W
16-Lead QSOP, JA Thermal Impedance . . . . . . . 149.97°C/W
Lead Temperature, Soldering (10 sec) . . . . . . . . . . . . .300°C
IR Reflow, Peak Temperature . . . . . . . . . . . . . . . . . . . .220°C



Switch Type SPDT
# Channels 4
Ron (Ohms) 2.5Ohms
Id, Is (ON) 10pA
Bandwidth 160MHz
t ON 19ns
t OFF 7ns
Supply Voltage Dual (±2.5V),Single (+1.8V to +5.5V),Single (+2.5V),Single (+3.3V),Single (+3V),Single (+5V)





Description

The ADG733 and ADG734 are low voltage, CMOS devices comprising three independently selectable SPDT (single pole, double throw) switches and four independently selectable SPDT switches respectively.
Low power consumption and operating supply range of 1.8 V to 5.5 V and dual ±3 V make the ADG733 and ADG734 ideal for battery powered, portable instruments. All channels exhibit break-before-make switching action preventing momentary shorting when switching channels. An EN input on the  ADG733 and ADG734  is used to enable or disable the device. When disabled, all channels are switched OFF.
These ADG733 and ADG734  21 multiplexers/SPDT switches are designed on an enhanced submicron process that provides low power dissipation yet gives high switching speed, very low on resistance, high signal bandwidths and low leakage curre nts. On resistance is in the region of a few ohms, is closely matched between switches and very flat over the full signal range. These parts can operate equally well in either direction and have an input signal range which extends
to the supplies.
The  ADG733 and ADG734  is available in small TSSOP and QSOP packages.
