ADG436

Features:

44 V Supply Maximum Ratings
V_SS to V_DD Analog Signal Range
Low Power Dissipation
Fast Switching Times
t_ON < 175 ns
t_OFF < 145 ns
Low Leakage Currents (5 nA Max)
Low Charge Injection (10 pC)
Break-Before-Make Switching Action


Application

Audio and Video Switching
Battery Powered Systems
Test Equipment
Communications Systems

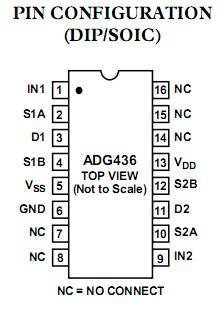

Pinout




Specifications

V_DD to V_SS  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  +44 V
V_DD to GND  . . . . . . . . . . . . . . . . . . . . . . . . .  0.3 V to +30 V
V_SS to GND . . . . . . . . . . . . . . . . . . . . . . . . . . +0.3 V to 30 V
Analog, Digital Inputs². . . . . . . . . . .   V_SS 2 V to V_DD + 2 V
 or 20 mA, whichever occurs first
Continuous Current, S or D  . . . . . . . . . . . . . . . . . . . .  20 mA
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . . . 40 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Operating Temperature Range
Industrial  (B Version)  . . . . . . . . . . . . . . .   40°C to +85°C
Storage Temperature Range  . . . . . . . . .  65°C to +125°C
Junction Temperature  . . . . . . . . . . . . . . . . . . . . . .  +150°C
Plastic DIP Package
_JA, Thermal Impedance  . . . . . . . . . . . . . . . . . . . 117°C/W
Lead Temperature, Soldering (10 sec)  . . . . . . . . .  +260°C


Description

The ADG436 is a monolithic CMOS device comprising two independently selectable SPDT switches. ADG436 is designed on an LC²MOS process which provides low power dissipation yet gives high switching speed and low on resistance. The on resistance profile is very flat over the full analog input range ensuring good linearity and low distortion when switching audio signals. High switching speed also makes the part suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the part ideally suited for portable and battery powered instruments.

Each ADG436 switch conducts equally well in both directions when ON and has an input signal range which extends to the power supplies. In the OFF condition, signal levels up to the supplies are blocked. All switches exhibit break-before-make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
