ADG3247

Features:

225 ps Propagation Delay through the Switch
Data Rate 1.244 Gbps
2.5 V/3.3 V Supply Operation
Selectable Level Shifting/Translation
Small Signal Bandwidth 610 MHz
Level Translation
    3.3 V to 2.5 V
    3.3 V to 1.8 V
    2.5 V to 1.8 V
40-Lead 6 mm  6 mm LFCSP and 38-Lead TSSOP Packages


Application

3.3 V to 1.8 V Voltage Translation
3.3 V to 2.5 V Voltage Translation
2.5 V to 1.8 V Voltage Translation
Bus Switching
Bus Isolation
Hot Plug
Hot Swap
Analog Switching Applications

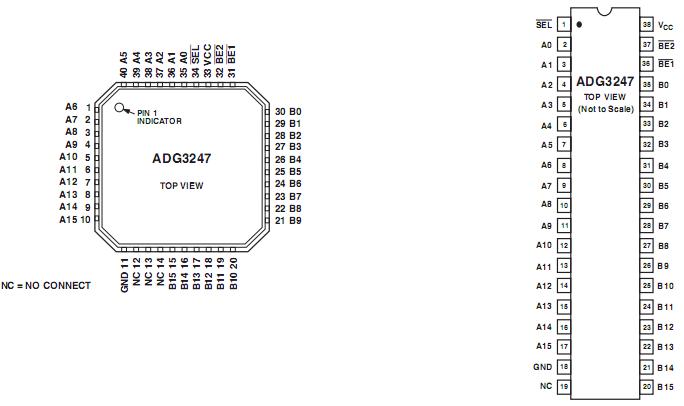

Pinout




Specifications

V_CC to GND  . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to +4.6 V
Digital Inputs to GND  . . . . . . . . . . . . . . . . .  0.5 V to +4.6 V
DC Input Voltage  . . . . . . . . . . . . . . . . . . . . .0.5 V to +4.6 V
DC Output Current  . . . . . . . . . . . . . . . . . . . . . . . . . .  120 mA
Operating Temperature Range
  Industrial (B Version)  . . . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature Range  . . . . . . . . . . . 65°C to +150°C
Junction Temperature  . . . . . . . . . . . . . . . . . . . .  . . . .  150°C


Description

The ADG3247 is a 2.5 V or 3.3 V 16-bit, 2-port digital switch. ADG3247 is designed on Analog Devices' low voltage CMOS process,which provides low power dissipation yet gives high switching speed and very low on resistance, allowing inputs to be connected to outputs without additional propagation delay or generating additional ground bounce noise.

This allows ADG3247 to be used as two 8-bit digital switches or one 16-bit bus switch. These bus switches allow bidirectional signals to be switched when ON. In the OFF condition, signal levels up to the supplies are blocked. This device is ideal for applications requiring level translation. When operated from a 3.3 V supply, level translation from 3.3 V inputs to 2.5 V outputs occurs. Similarly, if the device is operated from a 2.5 V supply and 2.5 V inputs are applied, the device will translate the outputs to 1.8 V.
