ADG1312

Features: 33 V supply range Fully specified at +12 V, ±15 V 130 on resistance No VL supply required 3 V logic-compatible inputs Rail-to-rail operation 16-lead TSSOP and 16-lead SOIC Typical power consumption: <0.03 WApplicationSignal switchingBattery-powered systemsCommunication systemsAudio/...

product image

ADG1312 Picture
See larger image
SeekIC No. : 004274849 Detail

ADG1312: Features: 33 V supply range Fully specified at +12 V, ±15 V 130 on resistance No VL supply required 3 V logic-compatible inputs Rail-to-rail operation 16-lead TSSOP and 16-lead SOIC Typical power ...

ADG1312 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADG1312
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

33 V supply range
Fully specified at +12 V, ±15 V
130 on resistance
No VL supply required
3 V logic-compatible inputs
Rail-to-rail operation
16-lead TSSOP and 16-lead SOIC
Typical power consumption: <0.03 W




Application

Signal switching
Battery-powered systems
Communication systems
Audio/video signal routing




Pinout

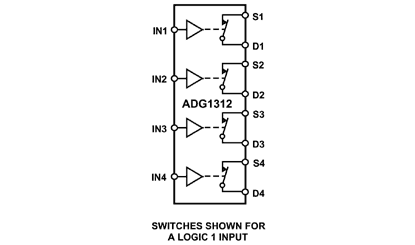

Connection Diagram

ADG1312 Diagram




Specifications

Parameter Rating
VDD to VSS
VDD to GND
VSS to GND
Analog Inputs1

Digital Inputs1

Peak Current, S or D

Continuous Current per
Channel, S or D
Operating Temperature Range
Automotive
Storage Temperature Range
Junction Temperature
16-Lead TSSOP, JA Thermal
Impedance (4-layer board)
16-Lead SOIC, JA Thermal
Impedance
Reflow Soldering Peak
Temperature, Pb free

35 V
−0.3 V to +25 V
+0.3 V to −25 V
VSS − 0.3 V to VDD + 0.3 V or
30 mA, whichever occurs first
GND − 0.3 V to VDD + 0.3 V or
30 mA, whichever occurs first
100 mA (pulsed at 1 ms,
10% duty cycle max)
25 mA

−40°C to +105°C
−65°C to +150°C
150°C
112°C/W

77°C/W

260°C



Switch Type SPST
# Channels 4
Ron (Ohms) 130Ohms
Id, Is (ON) 10nA
Bandwidth 600MHz
t ON 105ns
t OFF 40ns
Supply Voltage Dual (±15V),Single (+12V)





Description

The ADG1311/ADG1312/ADG1313 are monolithic CMOS devices containing four independently selectable switches designed on a CMOS process.

The ADG1311/ADG1312/ADG1313 contain four independent single-pole/single-throw (SPST) switches. The ADG1311/ADG1312/ADG1313  differ only in that the digital control logic is inverted. The product switches are turned on with Logic 0 on the appro-priate control input, while Logic 1 is required for the ADG1312. The product has two switches with digital control logic similar to the ADG1311; the logic is inverted on the other two switches. The product exhibits break-before-make switching action for use in multiplexer applications.

Each ADG1311/ADG1312/ADG1313 switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked.
