ADF7021

Features: `Low power, low IF transceiver`Frequency bands`80 MHz to 650 MHz`862 MHz to 940 MHz`Modulation schemes`2FSK, 3FSK, 4FSK`Spectral shaping`Gaussian and raised-cosine filtering`Data rates supported`0.05 kbps to 25 kbps`2.3 V to 3.6 V power supply`Programmable output power−16 dBm to +1...

product image

ADF7021 Picture
See larger image
SeekIC No. : 004274807 Detail

ADF7021: Features: `Low power, low IF transceiver`Frequency bands`80 MHz to 650 MHz`862 MHz to 940 MHz`Modulation schemes`2FSK, 3FSK, 4FSK`Spectral shaping`Gaussian and raised-cosine filtering`Data rates sup...

ADF7021 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADF7021
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low power, low IF transceiver
`Frequency bands
`80 MHz to 650 MHz
`862 MHz to 940 MHz
`Modulation schemes
`2FSK, 3FSK, 4FSK
`Spectral shaping
`Gaussian and raised-cosine filtering
`Data rates supported
`0.05 kbps to 25 kbps
`2.3 V to 3.6 V power supply
`Programmable output power
−16 dBm to +13 dBm in 63 steps
`Automatic PA ramp control
`Receiver sensitivity
`−125 dBm at 1 kbps, 2 FSK
`On-chip VCO and fractional-N PLL
`On-chip 7-bit ADC and temperature sensor
`Fully automatic frequency control loop (AFC)
`Digital RSSI
`Integrated Tx/Rx switch
`Leakage current <1 A in power-down mode


Application

·Narrow-band standards
·ETSI EN 300-220, FCC Part 90, FCC Part 15, FCC Part 95,
·ARIB STD-T67
·Low cost, wireless data transfer
·Remote control/security systems
·Wireless metering
·Private mobile radio
·Wireless medical telemetry service (WMTS)
·Keyless entry
·Home automation
·Process and building control
·Pagers


Pinout

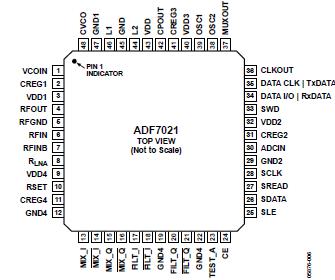

Connection Diagram


Specifications

VDD to GND1 ................−0.3 V to +5 V
Analog I/O Voltage to GND.. −0.3 V to AVDD + 0.3 V
Digital I/O Voltage to GND.. −0.3 V to DVDD + 0.3 V
Operating Temperature Range
Industrial (B Version)......... −40°C to +85°C
Storage Temperature Range ... −65°C to +125°C
Maximum Junction Temperature ........  150°C
MLF JA Thermal Impedance .........  26°C/W
Reflow Soldering
Peak Temperature................   260°C
Time-at-Peak Temperature ........... 40 sec
