Features: Low power, low IF transceiver Frequency bands: 135 MHz to 650 MHz Data rates supported 0.15 kbps to 200 kbps, FSK 0.15 kbps to 64 kbps, ASK 2.3 V to 3.6 V power supply Programmable output power −16 dBm to +13 dBm in 0.3 dBm steps Receiver sensitivity −119 dBm at 1 kbps, FSK ...
ADF7020-1: Features: Low power, low IF transceiver Frequency bands: 135 MHz to 650 MHz Data rates supported 0.15 kbps to 200 kbps, FSK 0.15 kbps to 64 kbps, ASK 2.3 V to 3.6 V power supply Programmable output...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Rating |
VDD to GND1 Analog I/O Voltage to GND Digital I/O Voltage to GND Operating Temperature Range Industrial (B Version) Storage Temperature Range Maximum Junction Temperature MLF JA Thermal Impedance Reflow Soldering Peak Temperature Time at Peak Temperature |
−0.3 V to +5 V |

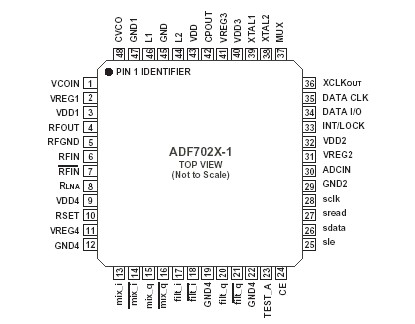

The ADF7020-1 is a low power, highly integrated FSK/GFSK/ ASK/OOK/GOOK transceiver designed for operation in the low UHF and VHF bands. The ADF7020-1 uses an external VCO inductor which allows you to set the operating frequency anywhere between 135MHz and 650MHz. Typical range of the VCO is about 10% of the operating frequency. A complete transceiver can be built using a small number of external discrete components, making the ADF7020-1 very suitable for price-sensitive and area-sensitive applications.
The transmit section contains a VCO and low noise fractional-N PLL with output resolution of <1 ppm. This frequency agile PLL allows the ADF7020-1 to be used in frequency hopping spread spectrum (FHSS) systems. The VCO operates at twice the fundamental frequency to reduce spurious emissions and frequency pulling problems.
The transmitter output power is programmable in 0.3 dB steps from −16 dBm to +13 dBm. The transceiver RF frequency, channel spacing, and modulation are programmable using a simple 3-wire interface. ADF7020-1 operates with a power supply range of 2.3 V to 3.6 V and can be powered down when not in use.
A low IF architecture is used in the receiver (200 kHz), minimizing power consumption and the external component count and avoiding interference problems at low frequencies. The ADF7020-1 supports a wide variety of programmable features including Rx linearity, sensitivity, and IF bandwidth, allowing the user to trade off receiver sensitivity and selectivity against current consumption, depending on the application. The receiver also features a patent-pending automatic frequency control (AFC) loop, allowing the PLL to track out the frequency error in the incoming signal. An on-chip ADC provides readback of an integrated temperature sensor, an external analog input, the battery voltage, or the RSSI signal, which provides savings on an ADC in some applications. The temperature sensor is accurate to ±10°C over the full operating temperature range of −40°C to +85°C. This accuracy can be improved by doing a 1-point calibration at room temperature and storing the result in memory.
