ADF4360-2

Features:

Output Frequency Range:  1800 MHz to 2150 MHz
Divide-by-2 output
+3.0 V to +3.6V Power Supply
1.8 V Logic Compatibility
Integer-N Synthesizer
Programmable Dual Modulus Prescaler 8/9, 16/17, 32/33
Programmable Output Power Level
3-Wire Serial Interface
Analog and Digital Lock Detect
Hardware and Software Power Down Mode


Application

Wireless Handsets (DECT, GSM, PCS, DCS, WCDMA)
Test Equipment
Wireless LANS
CATV Equipment

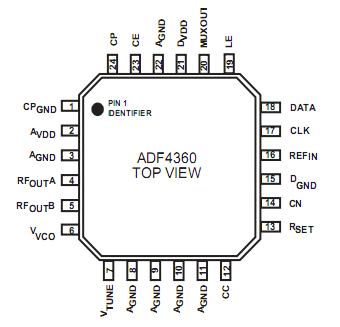

Pinout




Specifications

AV_DD to GND³...................................0.3 V to +3.9 V
AV_DD to DVDD  ................................0.3 V to +0.3 V
V_VCO to GND....................................0.3 V to +3.9 V
V_VCO to AVDD .................................0.3 V to +0.3 V
Digital I/O Voltage to GND.......0.3 V to V_DD + 0.3 V
Analog I/O Voltage to GND......0.3 V to V_DD + 0.3 V
REFIN, to GND.........................0.3 V to V_DD + 0.3 V
OperatingTemperature Range
Maximum Junction Temperature................   +150°C
CSP  JA Thermal Impedance
(Paddle Soldered).................................. .....50°C/W
(Paddle Not Soldered)............................. ....88°C/W


Description

The ADF4360-2 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-2 is designed for a center frequency of 2000MHz. In addition, there is a divide-by-2 option available, whereby the user gets an RF output of between 900MHz and 1075MHz. Control of all the on chip registers is via a simple 3-wire interface. The device operates with a power supply ranging from 3.0V to 3.6V and can be powered down when not in use.
