ADDC02815DA

Features:

28 V dc Input, 612 V dc @ 8.34 A, 100 W Output (ADDC02812DA)
28 V dc Input, 615 V dc @ 6.68 A, 100 W Output (ADDC02815DA)
Integral EMI Filter Designed to Meet MIL-STD-461D
Low Weight:  80 Grams
NAVMAT Derated
Many Protection and System Features


Application

Commercial and Military Airborne Electronics
Missile Electronics
Space-Based Antennae and Vehicles
Mobile/Portable Ground Equipment


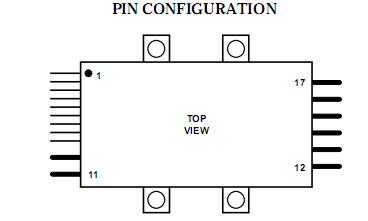

Pinout




Specifications

INHIBIT  . . . . . . . . . . . . . . . . . . . . . . . . . . 50 V dc, 0.5 V dc
SYNC  . . . . . . . . . . . . . . . . . . . . . . . . . . . .  8 V dc, 0.5 V dc
I_SHARE  . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V dc, 0.5 V dc
TEMP  . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 V dc, 0.3 V dc
Lead Soldering Temp (10 sec) . . . . . . . . . . . . . . . . .+300°C
Storage Temperature  . . . . . . . . . . . . . . . 65°C to +150°C
Maximum Junction Temperature  . . . . . . . . . . . . . . .+150°C
Maximum Case Operating Temperature  . . . . . . . . .+125°C


Description

The ADDC02812DA and ADDC02815DA hybrid military dc/ dc converters with integral EMI filter offer the highest power density of any dc/dc power converters with their features and in their power range available today. The converters with integral EMI filter are a fixed frequency, 1 MHz, square wave switching
dc/dc power supply. They are not variable frequency resonant converters.  In addition to many protection features, these converters have system level features that allow them to be used as a component in larger systems as well as a stand-alone power supply. The units are designed for high reliability and high performance applications where saving space and/or weight are critical.

The ADDC02812DA and ADDC02815DA are available in a hermetically sealed, molybdenum based hybrid package and are easily heatsink mountable. Three screening levels are available, including military SMD.
