Product Details

Description



Pinout




Specifications

Pin and Function Compatible Family1 ch, SOT-6
Resolution12 bits
Input Channels1
Interface TypeSPI / QSPI / Microwire
Differential InputNo
INL (LSB)+/-0.4
Max KSample Rate1000 ksps
Min Supply Voltage2.7 Volt
Max Supply Voltage5.25 Volt
Reference SourceSupply
Temperature Min-40 deg C
Temperature Max125 deg C
Power DownYes
Input Sample/HoldYes
Special FeaturesUndefined
Data Converter TypeADC
Max Sample Rate1 MSPS
View Using Catalog



Description

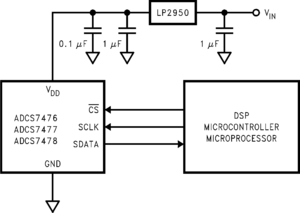

The ADCS7476, ADCS7477, and ADCS7478 are low power, monolithic CMOS 12-, 10- and 8-bit analog-to-digital converters that operate at 1 MSPS. The ADCS7476/77/78 are drop-in replacements for Analog Devices' AD7476/77/78. Each device is based on a successive approximation register architecture with internal track-and-hold. The serial interface is compatible with several standards, such as SPI™, QSPI™, MICROWIRE™, and many common DSP serial interfaces.

The ADCS7476/77/78 uses the supply voltage as a reference, enabling the devices to operate with a full-scale input range of 0 to VDD. The conversion rate is determined from the serial clock (SCLK) speed. These converters offer a shutdown mode, which can be used to trade throughput for power consumption. The ADCS7476/77/78 is operated with a single supply that can range from +2.7V to +5.25V. Normal power consumption during continuous conversion, using a +3V or +5V supply, is 2 mW or 10 mW respectively. The power down feature, which is enabled by a chip select ( ^CS) pin, reduces the power consumption to under 5 µW using a +5V supply. All three converters are available in a 6-lead, SOT-23 package and in a 6-lead LLP, both of which provide an extremely small footprint for applications where space is a critical consideration. These products are designed for operation over the automotive/extended industrial temperature range of −40°C to +125°C.

Reliability Metrics


Part Number Process EFR Reject EFR Sample Size PPM LTA Rejects LTA Device Hours FITS MTTF (Hours)
ADCS7476AIMF CMOS7 0 16561 0 0 954000 4 270700104
ADCS7476AIMFX CMOS7 0 16561 0 0 954000 4 270700104

Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.

For more information on Reliability Metrics, please click here.


Design Tools


Title Size in Kbytes Date
Evaluation Systems 43 Kbytes 29-May-2008 View
To evaluate the ADCS7476, order the ADC121S101EVAL evaluation board     View
