ADCMP370

Features: 2.25V to 5.5V Operating Voltage Range Low Power Consumption (2µA) Output Stages ADCMP370: Open-Drain with High Voltage (22V)ToleranceADCMP371: Push-Pull 10nA Input Bias Current 5nA Input Offset Current 6mV Input Offset Voltage 0V to VCC Common Mode Input Range Specified Over -40°C ...

product image

ADCMP370 Picture
See larger image
SeekIC No. : 004274259 Detail

ADCMP370: Features: 2.25V to 5.5V Operating Voltage Range Low Power Consumption (2µA) Output Stages ADCMP370: Open-Drain with High Voltage (22V)ToleranceADCMP371: Push-Pull 10nA Input Bias Current 5nA I...

ADCMP370 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ADCMP370
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2.25V to 5.5V Operating Voltage Range
Low Power Consumption (2µA)
Output Stages
ADCMP370: Open-Drain with High Voltage (22V)
Tolerance
ADCMP371: Push-Pull
10nA Input Bias Current
5nA Input Offset Current
6mV Input Offset Voltage
0V to VCC Common Mode Input Range
Specified Over -40°C to +125°C Temperature Range
5-Lead SC70 Package




Application

Voltage Detectors
Battery Management Systems
A/D Converters
Low Voltage Applications
Battery Powered Electronics
Portable Equipment

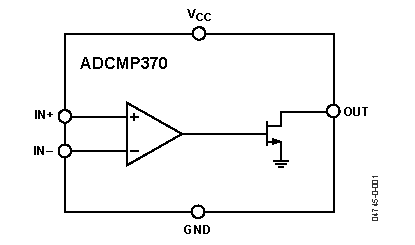

Pinout

ADCMP370 Diagram




Specifications

# Per Pkg 1
Adjustable Hysteresis Fixed
Input Range (V) 0 to 22V
Logic Output Open-Drain
Package 5-Lead SC-70
Prop Delay (ns)typ 5000ns
Supply Current 0.0020mA
Voltage Supply (V) 2.25 to 5.5


VCC -0.3V to +6V
OUT (ADCMP370) IN+, IN- -0.3V to +6V
OUT (ADCMP371) -0.3V to +25V
Operating Temperature Range -0.3V to +VCC+0.3V
Storage Temperature Range -40°C to +125°C
JA Thermal Impedance, SC70 -65°C to +150°C
Lead Temperature 146°C/W
Soldering (10 sec) 300°C
Vapour Phase (60 sec) 215°C
Infrared (15 sec) 220°C





Description

The ADCMP370/ADCMP371 are general purpose comparators with input offset voltages of 6mV (max). High performance over the -40°C to +85°C temperature range make them suitable for use in automotive
