ADC14071

Features:

Single +5V Operation
 Power Down Mode
 TTL/CMOS Input/Output Compatible


Application

 Document Scanners
 Imaging
 Instrumentation
 PC-Based Data Acquisition
 Spectrum Analyzers
 Sonar/Radar
 xDSL
 Wireless Local Loop
Data Acquisition Systems
 DSP Front End

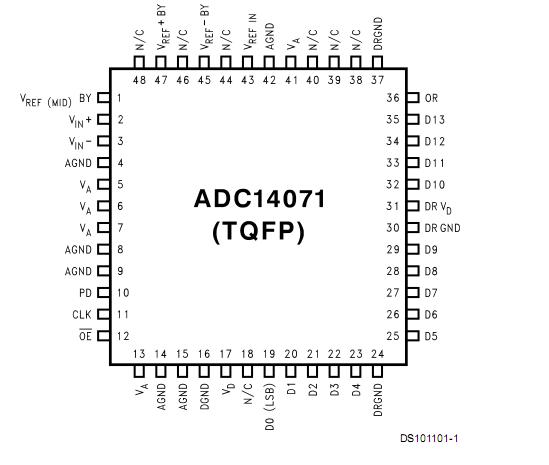

Pinout




Specifications

Supply Voltage
(V+ = V_A = V_D = DR V_D)                                                         6.0V
V_A −DRV_D,V_D −DRV_D                                                              0V
Voltage on Any I/O Pin                                     −0.5V to V⁺ +0.5V
Input Current at Pins 1, 45 and
47(Note 3)                                                                        ±10 mA
Input Current at Any Other Pin (Note
3)                                                                                      ±25 mA
Package Input Current (Note 3)                                       ±50 mA
Power Dissipation at T_A = 25˚C See (Note 4)
ESD Susceptibility (Note 5)
     Human Body Model                                                         1500V
     Machine Model                                                                  200V
Soldering Temperature, Infrared,
    10 seconds (Note 6)                                                         300˚C
Storage Temperature                                          −65˚C to +150˚C


Description

The ADC14071 is a 14-bit, monotholic analog to digital converter capable of conversion rates up to 8 Megasamples per second. This CMOS converter uses a differential, piperlined architecture with digital error correction and an on-chip track-and-hold circuit to maintain superb dynamic performance with input frequencies up to 20MHz. Tested and guaranteed dynamic performance specifications provide the designer with known performance. The ADC14071 operates on a +5V single supply consuming just 380mW (typical). The Power Down feature reduces power consumption to 20mW,typical.

The differential inputs of ADC14071 provide a full scale input swing of ±VREF with the possibility of a single input. Full use of the differential input is recommended for optimum perfomance. For ease of use, the reference input is single ended. This singleended reference input is converted on-chip to a differential
reference configuration for use by the processing circuitry.Output data format is 14-bit straight binary.

The ADC14071 may be used to replace many hybrid converters with a resultant saving of space, power and cost.The ADC14071 comes in a 48-pin TQFP and is specified to operate over the industrial temperature range of −40˚C to +85˚C.
