Features:

·Single +5V Operation
·Auto-Calibration
·Power Down Mode
·TTL/CMOS Input/Output compatible


Application

·Instrumentation
· PC-Based Data Acquisition
· Data Communications
·Blood Analyzers
·Sonar/Radar


Pinout

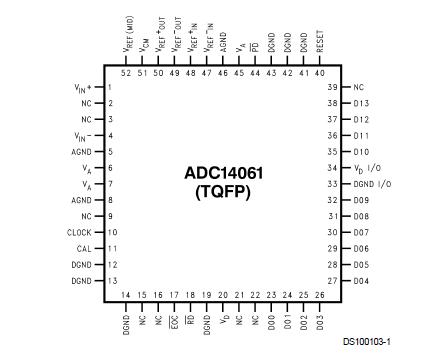

Connection Diagram


Specifications

If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/Distributors for availability and specifications.
Supply Voltage (VA, VD, VD I/O) ............6.5V
Voltage on Any I/O Pin........ . −0.3V to V+ +0.3V
Input Current at Any Pin (Note 3) ...... ...±25mA
Package Input Current (Note 3) ...... ....±50mA
Power Dissipation at TA = 25 ....... ...(Note 4)
ESD Susceptibility (Note 5)
Human Body Model ..................1500V
Machine Model .....................200V
Soldering Temp., Infrared, 10 sec. (Note 6) ......300
Storage Temperature............ −65 to +150


Description

The ADC14061 is a self-calibrating 14-bit, 2.5 Megasample per second analog to digital converter. It operates on a single +5V supply, consuming just 390mW (typ). The ADC14061 provides an easy and affordable upgrade from 12 bit converters. The ADC14061 may also be used to replace many hybrid converters with a resultant saving of space, power and cost.

The ADC14061 operates with excellent dynamic performance at input frequencies up to 1⁄2 the clock frequency. The calibration feature of the ADC14061 can be used to get more consistent and repeatable results over the entire operating temperature range. On-command self-calibration reduces many of the effects of temperature-induced drift, resulting in more repeatable conversions.

The Power Down feature reduces power consumption to less than 2mW.

The ADC14061 comes in a TQFP and is designed to operate over the commercial temperature range of 0 to +70.
