ADC12DL065

Features:

·Single +3.3V supply operation
·Internal sample-and-hold
·Internal reference
·Outputs 2.4V to 3.6V compatible
·Power down mode
·Duty Cycle Stabilizer
·Multiplexed Output Mode




Application

·Ultrasound and Imaging
·Instrumentation
·Communications Receivers
·Sonar/Radar
·xDSL
·Cable Modems
·DSP Front Ends

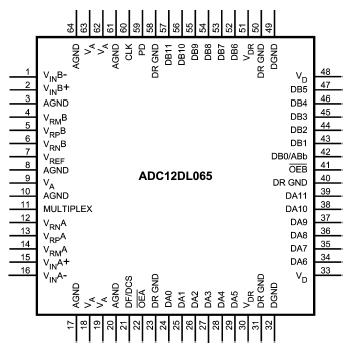

Pinout






Specifications

V_A, V_D, V_DR 4.2V
|V_AV_D| 100 mV
Voltage on Any Input or Output Pin -0.3V to (V_A or V_D +0.3V)
Input Current at Any Pin (Note 3) ±25 mA
Package Input Current (Note 3)±50 mA
Package Dissipation at T_A = 25 See (Note 4)
ESD Susceptibility
Human Body Model (Note 5)2500V
Machine Model (Note 5)250V
Soldering Temperature,
Infrared, 10 sec. (Note 6)235
Storage Temperature-65 to +150

Resolution	12 bits
Channels	2 Channels
SNR	69 dB
SFDR	85 dB
ENOB	11.1 bits
Max Sample Rate	65 MSPS
Min Sample Rate	15 MSPS
Power Dissipation	0.36 Watt
PowerWise Rating 1	1.26 pJ/conv
INL (+/-)	0.75 LSB
SINAD	68.5 dB
DNL (+/-)	0.4 LSB
THD dB	-83.5 dB
Min Supply Voltage	3 Volt
Max Supply Voltage	3.6 Volt
Nominal Vin	2 Vpp
Temperature Min	-40 deg C
Temperature Max	85 deg C
Data Converter Type	ADC
Automotive Selection Guide	Yes
PowerWise	Yes
View Using Catalog

Description

The ADC12DL065 is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 65 Megasamples per second (MSPS). This converter uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize power consumption while providing excellent dynamic performance and a 250 MHz Full Power Bandwidth. Operating on a single +3.3V power supply, the ADC12DL065 achieves 11.0 effective bits at nyquist and consumes just 360 mW at 65 MSPS, including the reference current. The Power Down feature reduces power consumption to 36 mW.
The differential inputs provide a full scale differential input swing equal to 2 times VREF with the possibility of a singleended input. Full use of the differential input is recommended for optimum performance. The digital outputs from the two ADC's are available on a single multiplexed 12-bit bus or on separate buses. Duty cycle stabilization and output data format are selectable using a quad state function pin. The output data can be set for offset binary or two's complement.
To ease interfacing to lower voltage systems, the digital output driver power pins of the ADC12DL065 can be connected to a separate supply voltage in the range of 2.4V to the analog supply voltage. This device is available in the 64-lead TQFP package and will operate over the industrial temperature range of -40 to +85. An evaluation board is available to ease the evaluation process.
