ADC122S051CIMM/NOPB, US $ 1.6-2.12 , National Semiconductor (TI), ADC122S051CIMM/NOPB DataSheet download, circuit diagram from SeekIC.com

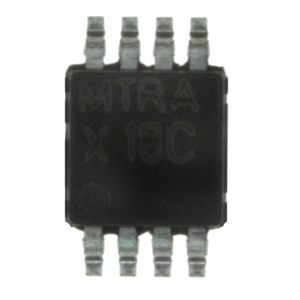

See larger image

SeekIC No. : 00330377 Detail

ADC122S051CIMM/NOPB: ADC (A/D Converters)

ADC122S051CIMM/NOPB Data Sheet

US $ 1.6~2.12 / Piece | Get Latest Price

Part Number:: ADC122S051CIMM/NOPB
Mfg:: National Semiconductor (TI)
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50

Unit Price
$2.12
$1.9
$1.69
$1.6

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ADC1001 evaluate
Features: `ADC1001 is pin compatible with ADC0801 series 8-bit A/D converters`Compatible with NSC8...
ADC1001CCJ evaluate
IC ADC 10BIT MPU COMPAT 20-CDIP
ADC1001CCJ-1 evaluate
IC ADC 10BIT MPU COMPAT 20-CDIP

Product Details

Quick Details

Number of Converters :	1	Number of ADC Inputs :	2
Architecture :	SAR	Conversion Rate :	500 KSPs
Resolution :	12 bit	Input Type :	Voltage
Interface Type :	Serial (4-Wire, SPI, QSPI, Microwire)	SNR :	72.5 dB
Voltage Reference :	Supply	Supply Voltage - Max :	5.25 V
Supply Voltage - Min :	2.7 V	Maximum Operating Temperature :	+ 85 C
Mounting Style :	SMD/SMT	Package / Case :	MSOP
Packaging :	Reel

Description

Maximum Power Dissipation :
Architecture : SAR
Mounting Style : SMD/SMT
Packaging : Reel
Supply Voltage - Min : 2.7 V
Number of ADC Inputs : 2
Input Type : Voltage
Resolution : 12 bit
Maximum Operating Temperature : + 85 C
Number of Converters : 1
Supply Voltage - Max : 5.25 V
Package / Case : MSOP
Conversion Rate : 500 KSPs
Voltage Reference : Supply
Interface Type : Serial (4-Wire, SPI, QSPI, Microwire)
SNR : 72.5 dB

Parameters:

Technical/Catalog Information	ADC122S051CIMM/NOPB
Vendor	National Semiconductor
Category	Integrated Circuits (ICs)
Number of Bits	12
Package / Case	8-MSOP, Micro8?, 8-uMAX, 8-uSOP,
Data Interface	Serial
Packaging	Tape & Reel (TR)
Sampling Rate (Per Second)	500k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	2 Single-Ended, Unipolar
Number of Converters	1
Power Dissipation (Max)	10mW
Drawing Number	14; MUA08A; ; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADC122S051CIMM NOPB ADC122S051CIMMNOPB ADC122S051CIMMTR ND ADC122S051CIMMTRND ADC122S051CIMMTR
