ADC12040

Features:

·Single supply operation
·Internal sample-and-hold
·Outputs 2.5V to 5V compatible
·TTL/CMOS compatible input/outputs
·Low power consumption
·Power down mode
·On-chip reference buffer


Application

·Ultrasound and Imaging
·Instrumentation
·Cellular Base Stations/Communications Receivers
·Sonar/Radar
·xDSL
·Wireless Local Loops/Cable Modems
·HDTV/DTV
·DSP Front Ends

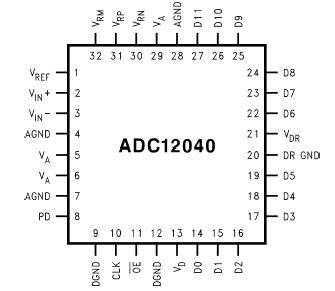

Pinout




Specifications

V_A, V_D, V_DR                                                                                    6.5V
|V_AV_D|                                                                                100 mV
Voltage on Any Input or Output Pin               -0.3V to (V_A or V_D +0.3V)
Input Current at Any Pin (Note 3)                                            ±25 mA
Package Input Current (Note 3)                                               ±50 mA
Package Dissipation at T_A = 25                                      See (Note 4)
ESD Susceptibility
Human Body Model (Note 5)                                                        2500V
Machine Model (Note 5)                                                                 250V
Soldering Temperature,
Infrared, 10 sec. (Note 6)                                                              235
Storage Temperature                                                     -65 to +150

Description

The ADC12040 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (MSPS), minimum. This converter ADC12040 uses a differential, pipeline architecture with digital error correction and an on-chip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance. Operating on a single 5V power supply, this device consumes just 340 mW at 40 MSPS, including the reference current. The Power Down feature reduces power consumption to 40 mW.
The differential inputs provide a full scale input swing equal to VREF with the possibility of a single-ended input. Full use of the differential input is recommended for optimum performance.
For ease of use, the buffered, high impedance, single-ended reference input is converted on-chip to a differential reference for use by the processing circuitry. Output data format is 12-bit offset binary.
This device ADC12040 is available in the 32-lead LQFP package and will operate over the industrial temperature range of -40 to +85.
