ADC11DL066

Features:

·Single +3.3V supply operation
·Internal sample-and-hold
·Outputs 2.4V to 3.3V compatible
·Power down mode
·On-chip reference


Application

·Ultrasound and Imaging
·Instrumentation
·Communications Receivers
·Sonar/Radar
·xDSL
·Cable Modems
·DSP Front Ends

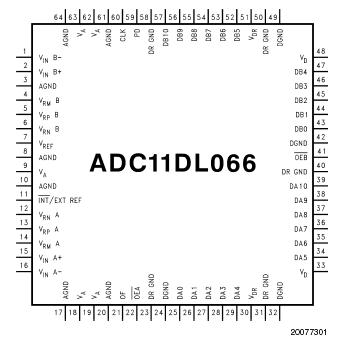

Pinout




Specifications

V_A, V_D, V_DR                                                                          4.2V
|V_AV_D|                                                                        100 mV
Voltage on Any Input or Output Pin                  -0.3V to (V_A or V_D
                                                                                         +0.3V)
Input Current at Any Pin (Note 3)                                   ±25 mA
Package Input Current (Note 3)                                      ±50 mA
Package Dissipation at T_A = 25                              See (Note 4)
ESD Susceptibility
Human Body Model (Note 5)                                                2500V
Machine Model (Note 5)                                                         250V
Soldering Temperature,
Infrared, 10 sec. (Note 6)                                                      235
Storage Temperature                                             -65 to +150



Description

The ADC11DL066 is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 11-bit digital words at 66 Megasamples per second (MSPS), minimum. This converter uses a differential, pipeline architecture with digital error correction and an onchip sample-and-hold circuit to minimize die size and power consumption while providing excellent dynamic performance and a 450 MHz Full Power Bandwidth. Operating on a single 3.3V power supply, the ADC11DL066 achieves 10.3 effective bits and consumes just 686 mW at 66 MSPS, including the reference current. The Power Down feature reduces power consumption to 75 mW.
The differential inputs provide a full scale differential input swing equal to 2 times VREF with the possibility of a singleended input. Full use of the differential input is recommended for optimum performance. The digital outputs from the two ADCs are available on separate 11-bit buses with an output data format choice of offset binary or two's complement. To ease interfacing to lower voltage systems, the digital output driver power pins of the ADC11DL066 can be connected to a separate supply voltage in the range of 2.4V to the digital supply voltage.
This device is available in the 64-lead TQFP package and will operate over the industrial temperature range of -40 to +85. An evaluation board is available to ease the evaluation process.
