Series: -
Number of Converters: 1
Mounting Type: Surface Mount
Number of Inputs and Type: 1 Single-Ended, Unipolar
Voltage Supply Source: Analog and Digital
Number of Bits: 8
Packaging: Tube
Sampling Rate (Per Second): 20M
Data Interface: Parallel
Operating Temperature: -20°C ~ 75°C

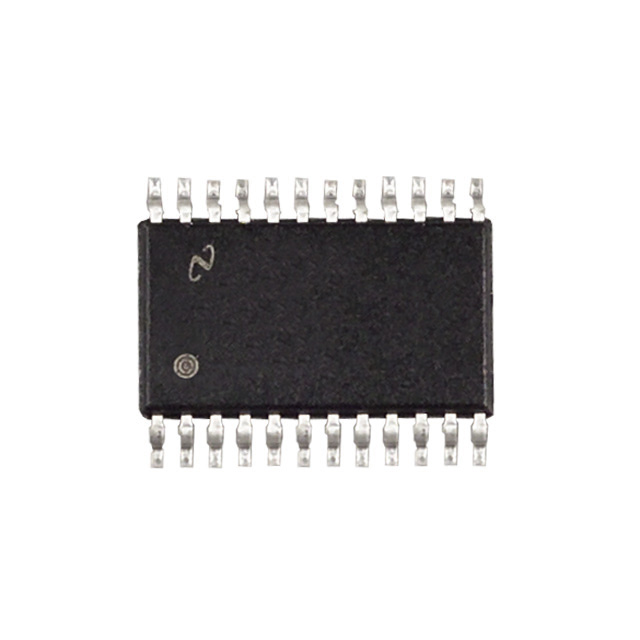

Package / Case: 24-SOIC (0.209", 5.30mm Width)
Power Dissipation (Max): 85mW
Supplier Device Package: 24-SOIC
Manufacturer: National Semiconductor
DescriptionThe ADC1175CIJM is designed as the 8-bit, 20MHz, 60mW A/D converter that belongs to the ADC1175 family. This device can be used in (1)video digitization; (2)digital still cameras; (3)set top boxes; (4)communications; (5)medical imaging; (6)personal computer video cameras; (7)digital television; (8)CCD imaging; (9)electro-optics.
The key specifications of the ADC1175CIJM are:(1)resolution 8 bits; (2)maximum sampling frequency 20 msps (min); (3)THD .55 dB (typ); (4)DNL 0.75 LSB (max); (5)ENOB 7.5 Bits (typ); (6)guaranteed no missing codes; (7)differential phase 0.5 degree (typ); (8)differential gain 0.7% (typ); (9)power consumption 60mW (typ). And the features of the ADC1175CIJM are:(1)internal sample-and-hold function; (2)single +5V operation; (3)internal reference bias resistors; (4)industry standard pinout; (5)TRI-state outputs.
The absolute maximum ratings of the ADC1175CIJM can be summarized as:(1)AVDD, DVDD:6.5 V;(2)voltage on any pin:-0.3V to 6.5V;(3)VRT, VRB:AVSS to AVDD;(4)CLK, OE voltage:-0.05 to (AVDD + 0.05V);(5)digital output voltage:DVSS to DVDD;(6)input current:±25mA;(7)package input current:±50mA;(8)ESD susceptibility human body model:2000 V;(9)ESD susceptibility machine model:200 V;(10)soldering temp., infared, 10 sec.:300°C;(11)storage temperature:-65°C to +150°C. If you want to know more information such as the electrical characteristics about the ADC1175CIJM, please download the datasheet in www.seekic.com or www.chinaicmart.com.
Parameters: | Technical/Catalog Information | ADC1175CIJM |
| Vendor | National Semiconductor |
| Category | Integrated Circuits (ICs) |
| Number of Bits | 8 |
| Package / Case | 24-SOP |
| Data Interface | Parallel |
| Packaging | Tube |
| Sampling Rate (Per Second) | 50M |
| Operating Temperature | -20°C ~ 75°C |
| Voltage Supply Source | Analog and Digital |
| Number of Inputs and Type | 1 Single-Ended, Unipolar |
| Number of Converters | 1 |
| Power Dissipation (Max) | 60mW |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | ADC1175CIJM
