Pinout
Specifications| Pin and Function Compatible Family | 4 ch, MSOP-10 |
| Resolution | 10 bits |
| Input Channels | 4 |
| Sample Rate Range (sps) | 50k to 200k |
| Interface Type | SPI / QSPI / Microwire |
| Differential Input | No |
| Power Down, typ. at 3.6V | 0.12 uW |
| Operating Power, typ at 3.6V, max ksps | 0.013 mW |
| Operating Power, 3.6V, 1ksps, max. PwrDn | 1.9 mW |
| PowerWise Rating 1 | 2.54 pJ/conv |
| INL (LSB) | +/-0.13 |
| DNL (LSB) | +/-0.13 |
| ENOB | 9.9 bits |
| SINAD | 61.8 dB |
| SNR | 61.8 dB |
| Max KSample Rate | 200 ksps |
| Min Supply Voltage | 2.7 Volt |
| Max Supply Voltage | 5.25 Volt |
| Reference Source | Supply |
| Temperature Min | -40 deg C |
| Temperature Max | 85 deg C |
| Power Down | Yes |
| Input Sample/Hold | Yes |
| Special Features | Undefined |
| Data Converter Type | ADC |
| Max Sample Rate | 0.2 MSPS |
| PowerWise | Yes |
| View Using Catalog |

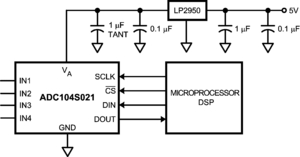

DescriptionThe ADC104S021 is a low-power, four-channel CMOS 10-bit analog-to-digital converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC104S021 is fully specified over a sample rate range of 50 ksps to 200 ksps. The converter is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to four input signals at inputs IN1 through IN4.
The output serial data is straight binary, and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE, and many common DSP serial interfaces.
The ADC104S021 operates with a single supply, that can range from +2.7V to +5.25V. Normal power consumption using a +3V or +5V supply is 1.94 mW and 6.9 mW, respectively. The power-down feature reduces the power consumption to just 0.12 µW using a +3V supply, or 0.47 µW using a +5V supply.
The ADC104S021 is packaged in a 10-lead MSOP package. Operation over the industrial temperature range of −40°C to +85°C is guaranteed.
Reliability Metrics
| Part Number |
Process |
EFR Reject |
EFR Sample Size |
PPM |
LTA Rejects |
LTA Device Hours |
FITS |
MTTF (Hours) |
| ADC104S021CIMM |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
| ADC104S021CIMMX |
CMOS7 |
0 |
16561 |
0 |
0 |
954000 |
4 |
270700104 |
Note: The Early Failure Rates (EFR) were calculated as point estimate PPM based on rejects and sample size for EFR. The Long Term Failure Rates were calculated at 60% confidence using the Arrhenius equation at 0.7eV activation energy and derating the assumed stress temperature of 150°C to an application temperature of 55°C.For more information on Reliability Metrics, please click here.
Design Tools
| Title |
Size in Kbytes |
Date |
|
|
|
| Eval Board Users' Guide |
262 Kbytes |
28-Mar-2007 |
View Online |
Download |
|
| To evaluate the ADC104S021, order the ADC104S101EVAL evaluation board |
|
|
View |
|
|
If you have trouble printing or viewing PDF file(s), see Printing Problems.
|
ADC104S021 Data Sheet
