Product Details

Description



Features:

·Pin-compatible family
·Low power member of pin-compatible
·TxDAC product family
·Power dissipation @ 3.3 V
·22 mW @ 10 MSPS
·25 mW @ 25 MSPS
·30 mW @ 50 MSPS
·Sleep mode: 3.1 mW @ 3.3 V
·Supply voltage: 1.7 V to 3.6 V
·SFDR to Nyquist
·AD9707: 84 dBc @ 5 MHz output
·AD9707: 83 dBc @ 10 MHz output
·AD9707: 75 dBc @ 20 MHz output
·AD9707 NSD @ 10 MHz output, 125 MSPS: −147 dBc/Hz
·Differential current outputs: 1 mA to 5 mA
·Data format: twos complement or straight binary
·On-chip 1.0 V reference
·CMOS-compatible digital interface
·Edge-triggered latches
·Clock input: single-ended and differential
·Output common mode: adjustable 0 V to 1.2 V
·Power-down mode < 2 mW @ 3.3 V (SPI® controllable)
·Serial peripheral interface (SPI)
·Self-calibration
·32-lead LFCSP_VQ, Pb-free package





Pinout

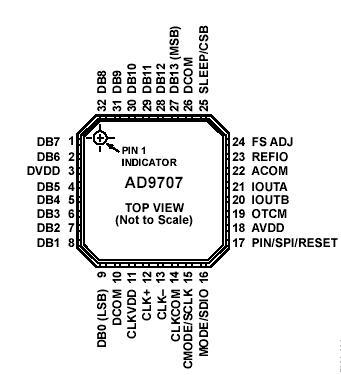

  Connection Diagram

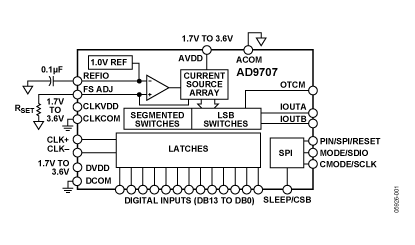

AD9704 Diagram




Specifications

Parameter With Respect to Rating
DVDD
CLKVDD
ACOM
ACOM
DCOM
AVDD
AVDD
DVDD
CLOCK, SLEEP
Digital Inputs, MODE
IOUTA, IOUTB
REFIO, REFLO, FS ADJ, OTCM
CLK+, CLK, CMODE
Junction Temperature
Storage Temperature Range
Lead Temperature (10 sec)
ACOM
DCOM
CLKCOM
DCOM
CLKCOM
CLKCOM
DVDD
CLKVDD
CLKVDD
DCOM
DCOM
ACOM
ACOM
CLKCOM
−0.3 V to +3.9 V
−0.3 V to +3.9 V
−0.3 V to +3.9 V
−0.3 V to +0.3 V
−0.3 V to +0.3 V
−0.3 V to +0.3 V
−3.9 V to +3.9 V
−3.9 V to +3.9 V
−3.9 V to +3.9 V
−0.3 V to DVDD + 0.3 V
−0.3 V to DVDD + 0.3 V
−1.0 V to AVDD + 0.3 V
−0.3 V to AVDD + 0.3 V
−0.3 V to CLKVDD + 0.3 V
150°C
−65°C to +150°C
300°C


Resolution (Bits) 8bit
DAC Update Rate 175MSPS
DAC Settling Time 11ns
# DAC Outputs 1
DAC Type Current Out
DAC Input Format Par
Output FSR (0-2mA)
Ref Int/Ext Int/Ext
Supply Vnom Single(+2.7),Single(+3),Single(+3.3)
Pwr Diss (Max) 57mW
Package CSP,SOP





Description

The AD9704/AD9705/AD9706/AD9707 are the fourth-generation family in the TxDAC series of high performance, CMOS digital-to-analog converters (DACs). This pin-compatible, 8/10/12/14bit resolution family is optimized for low power operation, while maintaining excellent dynamic performance. The AD970x family is pin-compatible with the AD9748/AD9740/ AD9742/AD9744 family of TxDAC converters and is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface, LFCSP_VQ package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD970x offers exceptional ac and dc performance, while supporting update rates up to 175 MSPS.

The flexible power supply operating range of 1.7 V to 3.6 V and low power dissipation of the AD970x parts make them well-suited for portable and low power applications.

Power dissipation of the AD970x can be reduced to 15 mW, with a small trade-off in performance, by lowering the full-scale current output. In addition, a power-down mode reduces the standby power dissipation to approximately 2.2 mW.

The AD970x has an optional serial peripheral interface (SPI) that provides a higher level of programmability to enhance performance of the DAC. An adjustable output, common-mode feature allows for easy interfacing to other components that require common modes greater than 0 V.

Edge-triggered input latches and a 1.0 V temperature-compensated band gap reference have been integrated to provide a complete, monolithic DAC solution. The digital inputs support 1.8 V and 3.3 V CMOS logic families.
