Features: SNR = 54 dB with 99 MHz Analog Input500 MHz Analog BandwidthOn-Chip Reference and Track/Hold1.5 V p-p Differential Analog Input Range5.0 V and 3.3 V Supply Operation3.3 V CMOS/TTL OutputsPower: 2.1 W Typical at 210 MSPSDemultiplexed Outputs Each at 105 MSPSOutput Data Format OptionData S...
AD9410: Features: SNR = 54 dB with 99 MHz Analog Input500 MHz Analog BandwidthOn-Chip Reference and Track/Hold1.5 V p-p Differential Analog Input Range5.0 V and 3.3 V Supply Operation3.3 V CMOS/TTL OutputsP...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Resolution (Bits) | 10bit |
T-Put Rate | 210MSPS |
# Chan | 1 |
Supply V | Multi(+3.3, +5) |
Pwr Diss | 2.4W |
Interface | Par |
Ain Range | 1.5 V p-p |
SNR (dB) | 55dB |
Pkg Type | QFP |
Parameter | Temp | Test Level |
Min Typ Max | Unit |
RESOLUTION | 10 | Bits | ||
DC ACCURACY No Missing Codes1 Differential Nonlinearity Integral Nonlinearity Gain Error Gain Tempco |
Full 25°C Full 25°C Full 25°C Full |
IV I VI I VI I V |
Guaranteed 1.0 ±0.5 +1.25 1.0 +1.5 2.5 ±1.65 +2.5 3.0 +3.0 6.0 0 +6.0 130 |
LSB LSB LSB LSB % FS ppm/°C |
ANALOG INPUT Input Voltage Range (With Respect to AIN) Common-Mode Voltage Input Offset Voltage Reference Voltage Reference Tempco Input Resistance Input Capacitance Analog Bandwidth, Full Power |
Full Full 25°C Full Full Full Full 25°C 25°C |
V V I VI VI V VI V V |
±768 3.0 15 +3 +15 20 +20 2.4 2.5 2.6 50 610 875 1250 3 500 |
mV p-p V mV mV V ppm/°C pF MHz |
POWER SUPPLY Power Dissipation AC2 Power Dissipation DC3 IVCC3 IVD3 Power Supply Rejection Ratio PSRR |
25°C Full Full Full 25°C |
V VI VI VI I |
2.1 2.0 2.4 128 145 401 480 7.5 +0.5 +7.5 |
W W mA mA mV/V |

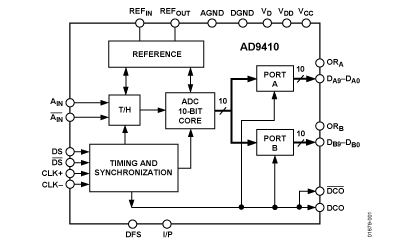

The AD9410 is a 10-bit monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and is opti-mized for high-speed conversion and ease of use. The product
operates at a 210 MSPS conversion rate, with outstanding dynamic performance over its full operating range.
The ADC AD9410 requires a 5.0 V and 3.3 V power supply and up to a 210 MHz differential clock input for full performance operation. No external reference or driver components are required for many applications. The digital outputs are TTL/CMOS-compatible, and separate output power supply pins also support interfacing with 3.3 V logic.
The clock input of AD9410 is differential and TTL/CMOS-compatible. The 10-bit digital outputs can be operated from 3.3 V (2.5 V to 3.6 V) supplies. Two output buses support demultiplexed data up to

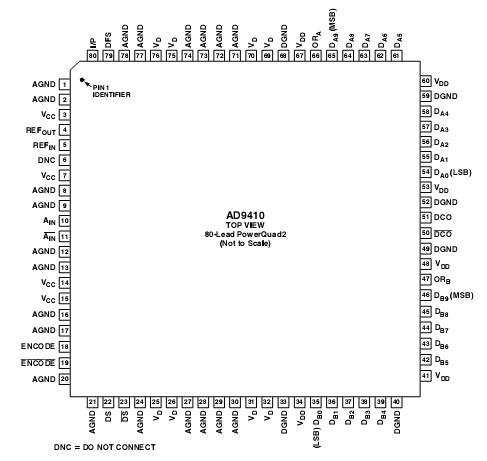

105 MSPS rates, and binary or two's complement output coding format is available. A data sync function is provided for timing-dependent applications. An output clock simplifies interfacing to external logic. The output data bus timing is selectable for parallel or interleaved mode, allowing for flexibility in latching output data. Fabricated on an advanced BiCMOS process, the AD9410 is available in an 80-lead surface-mount plastic package (PowerQuad(R)2) specified over the industrial temperature range (40°C to +85°C).
