AD9237

Features: Ultralow power85 mW at 20 MSPS135 mW at 40 MSPS190 mW at 65 MSPS SNR = 66 dBc to Nyquist at 65 MSPS SFDR = 80 dBc to Nyquist at 65 MSPS DNL = ±0.7 LSB Differential input with 500 MHz bandwidth Flexible analog input: 1 V p-p to 4 V p-p range Offset binary, twos complement, or gray code d...

product image

AD9237 Picture
See larger image
SeekIC No. : 004272939 Detail

AD9237: Features: Ultralow power85 mW at 20 MSPS135 mW at 40 MSPS190 mW at 65 MSPS SNR = 66 dBc to Nyquist at 65 MSPS SFDR = 80 dBc to Nyquist at 65 MSPS DNL = ±0.7 LSB Differential input with 500 MHz band...

AD9237 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD9237
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Ultralow power
85 mW at 20 MSPS
135 mW at 40 MSPS
190 mW at 65 MSPS
SNR = 66 dBc to Nyquist at 65 MSPS
SFDR = 80 dBc to Nyquist at 65 MSPS
DNL = ±0.7 LSB
Differential input with 500 MHz bandwidth
Flexible analog input: 1 V p-p to 4 V p-p range
Offset binary, twos complement, or gray code data formats
Output enable pin
2-step power-down
Full power-down and sleep mode
Clock duty cycle stabilizer




Application

Ultrasound and medical imaging
Battery-powered instruments
Hand-held scope meters
Low cost digital oscilloscopes
Low power digital still cameras and copiers
Low power communications

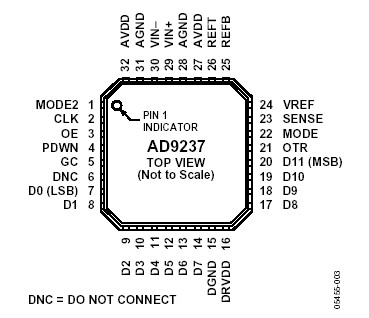

Pinout

Connection Diagram




Specifications

Pin Name With Respect to Min Max Unit
ELECTRICAL
AVDD
DRVDD
AGND
AVDD
Digital
Outputs, OE
CLK, MODE,
MODE2
VIN+, VIN
VREF
SENSE
REFB, REFT
PDWN		 AGND
DGND
DGND
DRVDD
DGND

AGND

AGND
AGND
AGND
AGND
AGND		 0.3
0.3
0.3
3.9
0.3

−0.3

0.3
0.3
0.3
0.3
0.3		 +3.9
+3.9
+0.3
+3.9
DRVDD + 0.3

AVDD + 0.3

AVDD + 0.3
AVDD + 0.3
AVDD + 0.3
AVDD + 0.3
AVDD + 0.3		 V
V
V
V
V

V

V
V
V
V
V
ENVIRONMENTAL1
Operating Temperature
Junction Temperature
Lead Temperature (10 sec)
Storage Temperature		 40


65		 +85
150
300
+150		 °C
°C
°C
°C


Resolution (Bits) 12bit
T-Put Rate 65MSPS
# Chan 1
Supply V Single(+3)
Pwr Diss 270mW
Interface Par
Ain Range 1 V p-p,2 V p-p,4 V p-p
SNR (dB) 66.5dB
Pkg Type CSP





Description

The AD9237 is a family of monolithic, single 3 V supply, 12-bit, 20 MSPS/40 MSPS/65 MSPS analog-to-digital converters (ADC). This family features a high performance sample-and-hold amplifier (SHA) and voltage reference. The AD9237 uses a multistage differential pipelined architecture with output error correction logic to provide 12-bit accuracy at 20 MSPS/ 40 MSPS/65 MSPS data rates and guarantees no missing codes over the full operating temperature range.

With significant power savings over previously available ADCs, the AD9237 is suitable for applications in imaging and medical ultrasound.

Fabricated on an advanced CMOS process, the AD9237 is available in a 32-lead LFCSP and is specified over the industrial temperature range (−40°C to +85°C).
