Product Details

Description

Features:

1.8 V analog supply operation
1.8 V to 3.3 V output supply
SNR = 69.5 dBc (70.5 dBFS) to 70 MHz input
SFDR = 85 dBc to 70 MHz input
Low power: 395 mW @ 125 MSPS
Differential input with 650 MHz bandwidth
On-chip voltage reference and sample-and-hold amplifier
DNL = ±0.15 LSB
Flexible analog input: 1 V p-p to 2 V p-p range
Offset binary, Gray code, or twos complement data format
Clock duty cycle stabilizer
Data output clock
Serial port control
Built-in selectable digital test pattern generation
Programmable clock and data alignment

Application

Ultrasound equipment
IF sampling in communications receivers
IS-95, CDMA-One, IMT-2000
Battery-powered instruments
Hand-held scopemeters
Low cost digital oscilloscopes

Specifications

Resolution (Bits)	12bit
T-Put Rate	125MSPS
# Chan	1
Supply V	Multi(+1.8Anlg, +3.3Dig)
Pwr Diss	425mW

Interface	Par
Ain Range	(2Vref) p-p,2 V p-p
SNR (dB)	69.5dB
Pkg Type	CSP

Parameter	Rating
ELECTRICAL AVDD to AGND DRVDD to DRGND AGND to DRGND AVDD to DRVDD D0 through D11 to DRGND DCO to DRGND OR to DRGND CLK+ to AGND CLK− to AGND VIN+ to AGND VIN− to AGND VREF to AGND SENSE to AGND REFT to AGND REFB to AGND SDIO/DCS to DRGND PDWN to AGND CSB to AGND SCLK/DFS to AGND OEB to AGND	−0.3 V to +2.0 V −0.3 V to +3.9 V −0.3 V to +0.3 V −3.9 V to +2.0 V −0.3 V to DRVDD + 0.3 V −0.3 V to DRVDD + 0.3 V −0.3 V to DRVDD + 0.3 V −0.3 V to +3.9 V −0.3 V to +3.9 V −0.3 V to AVDD + 1.3 V −0.3 V to AVDD + 1.3 V −0.3 V to AVDD + 0.2 V −0.3 V to AVDD + 0.2 V −0.3 V to AVDD + 0.2 V −0.3 V to AVDD + 0.2 V −0.3 V to DRVDD + 0.3 V −0.3 V to +3.9 V −0.3 V to +3.9 V −0.3 V to +3.9 V −0.3 V to +3.9 V
ENVIRONMENTAL Storage Temperature Range Operating Temperature Range Lead Temperature (Soldering 10 Sec) Junction Temperature	65°C to +125°C 40°C to +85°C 300°C 150°C

Description

The AD9233 is a monolithic, single 1.8 V supply, 12-bit, 80 MSPS/ 105 MSPS/125 MSPS analog-to-digital converter (ADC), featuring a high performance sample-and-hold amplifier (SHA) and on-chip voltage reference. The product uses a multistage differential pipeline architecture with output error correction logic to provide 12-bit accuracy at 125 MSPS data rates and guarantees no missing codes over the full operating temperature range.

The wide bandwidth, truly differential SHA allows a variety of user-selectable input ranges and offsets, including single-ended applications. It is suitable for multiplexed systems that switch full-scale voltage levels in successive channels and for sampling single-channel inputs at frequencies well beyond the Nyquist rate. Combined with power and cost savings over previously available ADCs, the AD9233 is suitable for applications in communications, imaging, and medical ultrasound.

A differential clock input controls all internal conversion cycles. A duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.

The digital output data is presented in offset binary, Gray code, or twos complement formats. A data output clock (DCO) is provided to ensure proper latch timing with receiving logic.

The AD9233 is available in a 48-lead LFCSP and is specified over the industrial temperature range (−40°C to +85°C).

AD9233

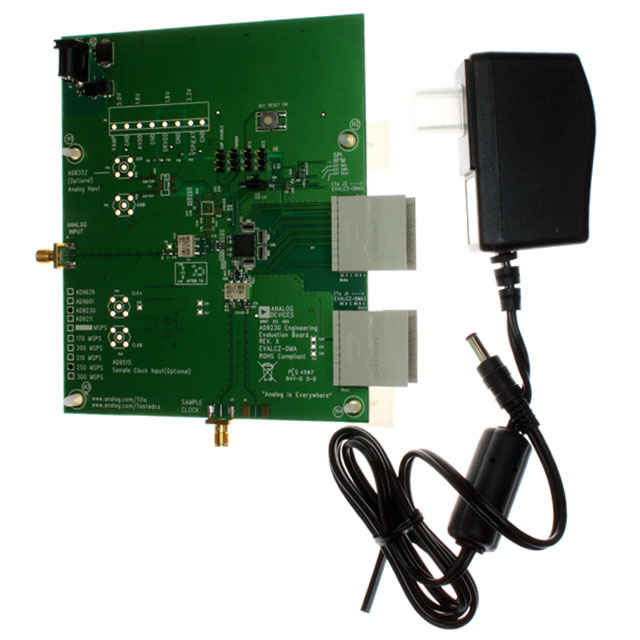

product image
