AD9071

Features:

10-Bit, 100 MSPS ADC
Low Power: 450 mW at 100 MSPS
On-Chip Track/Hold
280 MHz Analog Bandwidth
SINAD = 54 dB @ 41 MHz
On-Chip Reference
1 V p-p Analog Input Range
Single +5 V Supply Operation
+5 V/+3.3 V Outputs


Application

Digital Communications
Signal Intelligence
Digital Oscilloscopes
Spectrum Analyzers
Medical Imaging
Sonar
HDTV

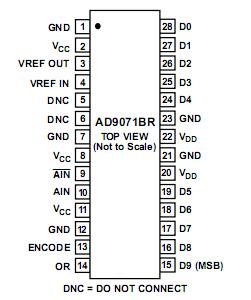

Pinout




Specifications

V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+6 V
Analog Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . V_CC to 0.0 V
Digital Inputs  . . . . . . . . . . . . . . . . . . . . . . . . . . .V_CC to 0.0 V
VREF IN, VREF OUT  . . . . . . . . . . . . . . . . . . . .    VCC to 0.0 V
Digital Output Current  . . . . . . . . . . . . . . . . . . . . . . . .10 mA
Operating Temperature  . . . . . . . . . . . . . . .40°C to +85°C
Storage Temperature  . . . . . . . . . . . . . . . .65°C to +150°C
Maximum Junction Temperature  . . . . . . . . . . . . . . . +175°C
Maximum Case Temperature  . . . . . . . . . . . . . . . . . . .+150°C


Description

The AD9071 is a monolithic sampling analog-to-digital converter with an on-chip track-and-hold circuit and TTL/CMOS digital interfaces. The product operates at a 100 MSPS conversion rate with outstanding dynamic performance over its full operating range.

The ADC requires only a single 5 V supply and an encode clock for full performance operation. The digital outputs are TTL compatible. Separate output power supply pins support interfacing with 3.3 V or 5 V logic. An out-of-range output (OR) is available that indicates a conversion result is outside the operating range. The output data are held at saturation levels during an out-of-range condition. The input amplifier supports differential or single-ended inter- faces.  An internal reference is included. Fabricated on an advanced BiCMOS process, the AD9071 is available in a plastic SOIC package specified over the industrial temperature range (40°C to +85°C).
