AD8802

PinoutSpecifications Resolution (Bits) 8bit DAC Update Rate 1.7MSPS DAC Settling Time 600ns # DAC Outputs 12 DAC Type Voltage Out DAC Input Format Ser,SPI Output FSR (Uni Vdd),(Uni Vref) Ref Int/Ext Ext Supply Vnom Single(+3),Single(+3.3),Single(+5) ...

product image

AD8802 Picture
SeekIC No. : 004272734 Detail

AD8802: PinoutSpecifications Resolution (Bits) 8bit DAC Update Rate 1.7MSPS DAC Settling Time 600ns # DAC Outputs 12 DAC Type Voltage Out DAC Input Format Ser,SPI Output...

floor Price/Ceiling Price

Part Number:
AD8802
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/14

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

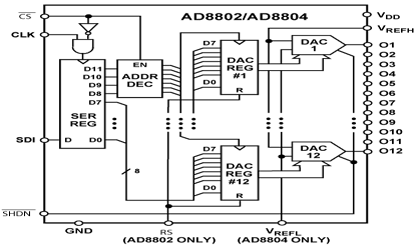

AD8802 Diagram




Specifications

Resolution (Bits) 8bit
DAC Update Rate 1.7MSPS
DAC Settling Time 600ns
# DAC Outputs 12
DAC Type Voltage Out
DAC Input Format Ser,SPI
Output FSR (Uni Vdd),(Uni Vref)
Ref Int/Ext Ext
Supply Vnom Single(+3),Single(+3.3),Single(+5)
Pwr Diss 20mW
Package DIP,SOIC,SOP





Description

The 12-channel AD8802/AD8804 provides independent digitallycontrollable voltage outputs in a compact 20-lead package. This potentiometer divider TrimDAC® allows replacement of the mechanical trimmer function in new designs. The AD8802/AD8804 is ideal for dc voltage adjustment applications.

Features of the 12-channel AD8802/AD8804 are:(1)Low Cost;(2)Replaces 12 Potentiometers;(3)Individually Programmable Outputs;(4)3-Wire SPI Compatible Serial Input;(5)Power Shutdown <55 mWatts Including IDD & IREF;(6)Midscale Preset, AD8802;(7)Separate VREFL Range Setting, AD8804;(8)+3 V to +5 V Single Supply Operation.

The absolute maximum ratings of the 12-channel AD8802/AD8804 can be summarized as:(1)VDD to GND:0.3, + 8 V;(2)VREFX to GND:0 V, VDD;(3)Outputs (Ox) to GND:0 V, VDD;(4)Digital Input Voltage to GND:0 V, +8 V;(5)Operating Temperature Range:40°C to +85°C;(6)Maximum Junction Temperature (TJ MAX):+150°C;(7)Storage Temperature:65°C to +150°C;(8)Lead Temperature (Soldering, 10 sec):+300°C;(9)Package Power Dissipation(TJ MAX TA)/qJA Thermal Resistance qJA,SOIC (SOL-20):60°C/W;(10)Package Power Dissipation(TJ MAX TA)/qJA Thermal Resistance qJA,P-DIP (N-20):57°C/W(11)Package Power Dissipation(TJ MAX TA)/qJA Thermal Resistance qJA,TSSOP-20 (RU-20):155°C/W.
