Features: CMOS 10-Bit 20 MSPS Sampling A/D Converter
Pin-Compatible 8-Bit Option
Power Dissipation: 160 mW
+5 V Single Supply Operation
Differential Nonlinearity: 0.5 LSB
Guaranteed No Missing Codes
Power Down (Standby) Mode
Three-State Outputs
Digital I/Os Compatible with +5 V or +3.3 V Logic
Adjustable Reference Input
Small Size: 28-Lead SOIC, 28-Lead SSOP, or 48-Lead
Thin Quad Flatpack (TQFP)Pinout
Specifications
| Parameter |
With Respect to |
Min Max |
Units |
AVDD
|
AVDD
|
-0.5 +6.5 |
Volts |
DVDD, DRVDD
|
DVDD, DRVDD
|
-0.5 +6.5 |
Volts |
AVSS
|
DVSS, DRVSS
|
-0.5 +0.5 |
Volts |
AIN
|
AVSS
|
-0.5 +6.5 |
Volts |
| REFTS, REFTF |
|
|
|
REFBS, REFBF
|
AVSS
|
-0.5 +6.5 |
Volts |
Digital Inputs, CLK
|
VSS, DRVSS
|
-0.5 +6.5 |
Volts |
| Junction Temperature |
|
+150 |
|
| Storage |
Temperature |
-65 +150
|
|
| Lead Temperature |
|
|
|
| (10 sec) |
|
+300 |
|

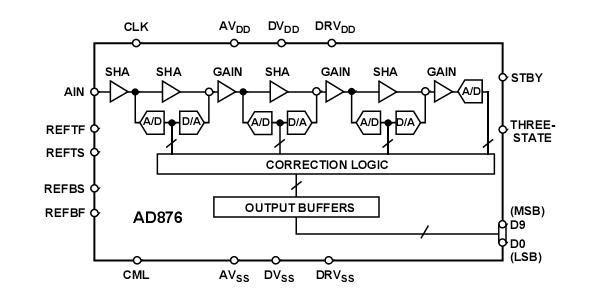

DescriptionThe AD876 is a CMOS, 160 mW, 10-bit, 20 MSPS analog-to- digital converter (ADC). The AD876 has an on-chip input sample-and-hold amplifier. By implementing a multistage pipe- lined architecture with output error correction logic, the AD876 offers accurate performance and guarantees no missing codes over the full operating temperature range. Force and sense con-nections to the reference inputs m inimize external voltage drops.
The AD876 can be placed into a standby mode of operation reducing the power below 50 mW. The AD876's digital I/O
interfaces to either +5 V or +3.3 V logic. Digital output pins can be placed in a high impedance state; the format of the out- put is straight binary coding.
The AD876's speed, resolution and single-supply operation ideally suit a variety of applications in video, multimedia, imag- ing, high speed data acquisition and communications.
TheAD876's low power and single-supply operation satisfy require-ments for high speed portable applications. Its speed and reso-lution ideally suit charge coupled device (CCD) input systemssuch as color scanners, digital copiers, electronic still camerasand camcorders.
AD876 Data Sheet
