Features: Very low voltage noise 2.8 nV/Hz @ 1 kHz
Rail-to-rail output swing
Low input bias current: 2 nA maximum
Very low offset voltage: 12 V typical
Low input offset drift: 0.6 V/ maximum
Very high gain: 120 dB
Wide bandwidth: 10 MHz typical
±5 V to ±18 V operationApplicationPrecision instrumentation
PLL filters
Laser diode control loops
Strain gage amplifiers
Medical instrumentation

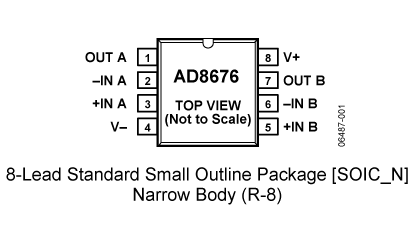

Thermocouple amplifiersPinout
Specifications
| -3dB Bandwidth |
10MHz |
| Slew Rate |
2.5V/s |
| Vos |
12V |
| Ib |
0.5nA |
| Input Noise (nV/rtHz) |
2.8nV/rtHz |
| Vcc-Vee Supply (V) |
10 to 36 |
| Iq per Amplifier |
2.9mA |
| # OpAmps per Pkg |
2 |
| Operating Temp Range |
-40 to +125 |
| Packages |
SOIC,SOP |
| Parameter |
Rating |
Supply Voltage
Input Voltage
Differential Input Voltage
Output Short-Circuit Duration to GND
Storage Temperature Range RM, R Packages
Operating Temperature Range
Junction Temperature Range RM, R Packages
Lead Temperature Range (Soldering, 10 sec) |
±18 V
±V Supply − 1.5 V
±0.7 V
Indefinite
−65 to +150
−40 to +125
−65 to +150
300 |
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
DescriptionThe AD8676 precision operational amplifier offers ultralow offset, drift, and voltage noise combined with very low input bias currents over the full operating temperature range. The AD8676 is a precision, wide bandwidth op amp featuring rail-to-rail output swings and very low noise. Operation is fully specified from ±5 V to ±15 V.
The AD8676 features a rail-to-rail output like that of the OP184, but with wide bandwidth and even lower voltage noise, com-bined with the precision and low power consumption like that of the industry-standard OP07 amplifier. Unlike other low noise, rail-to-rail op amps, the AD8676 has very low input bias current and low input current noise.
With typical offset voltage of only 12 V, offset drift of 0.2 V/, and noise of only 0.10 V p-p (0.1 Hz to 10 Hz), the AD8676 is perfectly suited for applications where large error sources cannot be tolerated. Precision instrumentation, PLL and other precision filter circuits, position and pressure sensors, medical instrumentation, and strain gage amplifiers benefit greatly from the very low noise, low input bias current, and wide bandwidth. Many systems can take advantage of the low noise, dc precision, and rail-to-rail output swing provided by the AD8676 to maxi-mize SNR and dynamic range.
The smaller packages and low power consumption afforded by the AD8676 allow maximum channel density or minimum board size for space-critical equipment.
The AD8676 is specified for the extended industrial temperature range (−40 to +125). The AD8676 is available in the 8-lead MSOP, and the popular 8-lead, narrow SOIC; both of which are lead-free packages. MSOP packaged devices are only available in tape and reel format.
For the single version of this ultraprecision rail-to-rail op amp, see the AD8675 data sheet.
AD8676 Data Sheet
