Features: Offset voltage: 2.5 mV maxLow input bias current: 1 pA maxSingle-supply operation: 5 V to 16 VDual-supply operation: ±2.5 V to ±8 VLow noise: 8 nV/Hz @ 10 kHzWide bandwidth: 4 MHzRail-to-rail outputUnity-gain stableLead-free packagingApplicationSensor amplificationReference buffersMedica...
AD8665: Features: Offset voltage: 2.5 mV maxLow input bias current: 1 pA maxSingle-supply operation: 5 V to 16 VDual-supply operation: ±2.5 V to ±8 VLow noise: 8 nV/Hz @ 10 kHzWide bandwidth: 4 MHzRail-to-r...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-3dB Bandwidth | 4MHz |
Slew Rate | 3.5V/s |
Vos | 600V |
Ib | 0.2pA |
Input Noise (nV/rtHz) | 10nV/rtHz |
Vcc-Vee Supply (V) | 5 to 16 |
Iq per Amplifier | 1.55mA |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +125 |

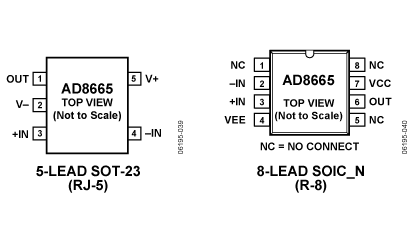

Packages | SOIC,SOT |
Parameter | Rating |
Supply Voltage Input Voltage Differential Input Voltage Output Short-Circuit to GND Storage Temperature Range Operating Temperature Range Lead Temperature (Soldering, 60 sec) Junction Temperature |
18 V GND to VDD ±18 V Indefinite −65 to +150 −40 to +125 300 150 |
The AD866x family are single supply, rail-to-rail output amplifiers with low noise performance featuring an extended operating range with supply voltages up to 16 V. They also feature low input bias currents, wide signal bandwidth, and low input voltage and current noise. For lower offset voltage, choose the AD8661/AD8662/AD8664 family.
The combination of low offsets, very low input bias currents,and wide supply range make these amplifiers AD8665 useful in a wide variety of cost sensitive applications normally associated with much higher priced JFET amplifiers. Systems using high impedance sensors, such as photo diodes, benefit from the combination of low input bias current, low noise, and low offset and bandwidth. The wide operating voltage range matches high performance ADCs and DACs. Audio applications and medical monitoring equipment can take advantage of the high input impedance, low voltage and current noise, wide bandwidth, and the lack of popcorn noise found in many other low input bias current amplifiers.
The AD866x family is specified over the extended industrial temperature range (−40°C to +125°C).
