AD8655: Features:
AD8655 Data Sheetfloor Price/Ceiling Price
- Part Number:
- AD8655
- Supply Ability:
- 5000
Price Break
- Qty
- 1~5000
- Unit Price
- Negotiable
- Processing time
- 15 Days
SeekIC Buyer Protection PLUS - newly updated for 2013!
- Escrow Protection.
- Guaranteed refunds.
- Secure payments.
- Learn more >>
Month Sales
268 Transactions
Payment Methods
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-
Recent History
- What is this?
Description
Features:

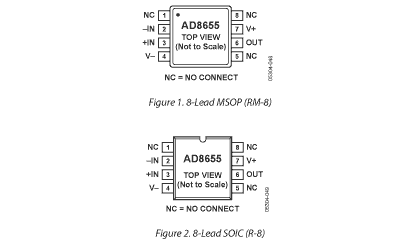

Pinout
Specifications
| -3dB Bandwidth | 28MHz |
| Slew Rate | 11V/s |
| Vos | 50V |
| Ib | 10pA |
| Input Noise (nV/rtHz) | 4nV/rtHz |
| Vcc-Vee Supply (V) | 2.7 to 5.5 |
| Iq per Amplifier | 4.5mA |
| # OpAmps per Pkg | 1 |
| Operating Temp Range | -40 to +125 |
| Packages | SOIC,SOP |
|
Parameter |
Rating |
| Supply Voltage Input Voltage Differential Input Voltage Output Short-Circuit Duration to GND Electrostatic Discharge (HBM) Storage Temperature Range R, RM Packages Junction Temperature Range R, RM Packages Lead Temperature (Soldering, 10 sec) |
6 V VSS − 0.3 V to VDD + 0.3 V ±6 V Indefinite 3.0 kV −65to +150 −65to +150 260 |
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
Description
The AD8655 is a low noise, precision CMOS amplifier featuring rail-to-rail output. The ability to swing rail-to-rail at the input and output enables designers to buffer ADCs and other wide output
