Features: Low supply current: 250 µA maxVery low input bias current: 1 pA maxLow offset voltage: 750 µV maxSingle-supply operation: 5 V to 26 VDual-supply operation: ±2.5 V to ±13 VRail-to-rail outputUnity gain stableNo phase reversalSC70 packageApplicationLine-/battery-powered instrum...
AD8641: Features: Low supply current: 250 µA maxVery low input bias current: 1 pA maxLow offset voltage: 750 µV maxSingle-supply operation: 5 V to 26 VDual-supply operation: ±2.5 V to ±13 VRail-...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
-3dB Bandwidth | 3.5MHz |
Slew Rate | 3V/s |
Vos | 50V |
Ib | 0.25pA |
Input Noise (nV/rtHz) | 27.5nV/rtHz |
Vcc-Vee Supply (V) | 5 to 26 |
Iq per Amplifier (max) | 290A |
# OpAmps per Pkg | 1 |
Operating Temp Range | -40 to +125 |
Packages | SC70,SOIC |
The AD8641 is a low power, precision JFET input amplifier featuring extremely low input bias current and rail-to-rail output. The ability to swing nearly rail-to-rail at the input and rail-to-rail at the output enables designers to buffer CMOS DACs, ASICs, and other wide output swing devices in single-supply systems. The outputs remain stable with capacitive loads of more than 500 pF.
The AD8641 is suitable for applications utilizing multichannel boards that require low power to manage heat. Other applica-tions include photodiodes, ATE reference level drivers, battery management, and industrial controls.

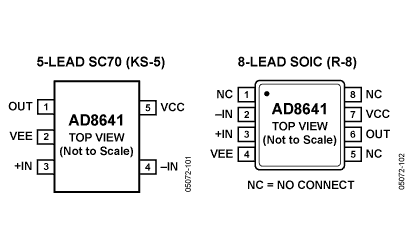

The AD8641 is fully specified over the extended industrial temperature range of 40° to +125°C. The AD8641 is available in 5-lead SC70 and 8-lead SOIC lead-free packages.
