AD8620

Features:

Low Noise 6 nV/Hz
Low Offset Voltage: 100 V Max
Low Input Bias Current 10 pA Max
Fast Settling: 600 ns to 0.01%
Low Distortion
Unity Gain Stable
No Phase Reversal
Dual-Supply Operation: ±5 V to ±13 V




Application

Photodiode Amplifier
ATE
Instrumentation
Sensors and Controls
High Performance Filters
Fast Precision Integrators
High Performance Audio

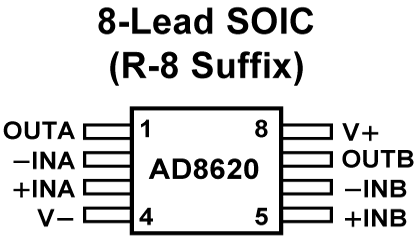

Pinout








Specifications



Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.3 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VS to VS+
Differential Input Voltage . . . . . . . . . . . . . . .. . . . . . . . . .± Supply Voltage
Output Short-Circuit Duration to GND . . . . . . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
R, RM Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 65°C to +150°C
Operating Temperature Range
AD8610/AD8620 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
R, RM Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to +150°C
Lead Temperature Range (Soldering, 10 sec) . . . . . . . . . . . . . . . . . 300°C




Description

The AD8610/AD8620 is a very high precision JFET input amplifier featuring ultralow offset voltage and drift, very low input voltage and current noise, very low input bias current, and wide bandwidth. Unlike many JFET amplifiers, the AD8610/AD8620 input bias current is low over the entire operating temperature range. The AD8610/AD8620 is stable with capacitive loads of over 1000 pF in noninverting unity gain; much larger capacitive loads can be driven easily at higher noise gains. The AD8610/AD8620 swings to within 1.2 V of the supplies even with a 1 k load, maximizing dynamic range even with limited supply voltages. Outputs slew at 50 V/s in either inverting or noninverting gain configurations, and settle to 0.01% accuracy in less than 600 ns. Combined with the high input impedance, great precision, and very high output drive, the AD8610/AD8620 is an ideal amplifier for driving high performance A/D inputs and buffering D/A converter outputs.

Applications for the AD8610/AD8620 include electronic instruments; ATE amplification, buffering, and integrator circuits; CAT/MRI/ultrasound medical instrumentation; instrumentation quality photodiode amplification; fast precision filters (including PLL filters); and high quality audio.

The AD8610/AD8620 is fully specified over the extended industrial (40°C to +125°C) temperature range. The AD8610 is available in the narrow 8-lead SOIC and the tiny MSOP8 surface-mount packages. The AD8620 is available in the narrow 8-lead SOIC package. MSOP8 packaged devices are available only in tape and reel.
