Features:

Low Offset Voltage: 500 V Max
Single Supply Operation: 2.7 V to 6 V
Low Supply Current: 750 A/Amplifier
Wide Bandwidth: 8 MHz
Slew Rate: 5 V/s
Low Distortion
No Phase Reversal
Low Input Currents
Unity Gain Stable





Application

Barcode Scanners
Battery-Powered Instrumentation
Multipole Filters
Sensors
Current Sensing
ASIC Input or Output Amplifier
Audio





Pinout

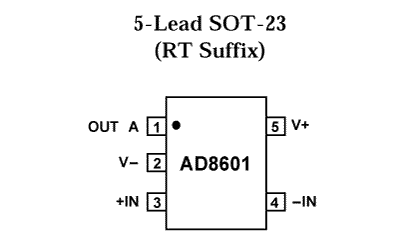

AD8601 Diagram




Specifications

ABSOLUTE MAXIMUM RATINGS*
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . ±6 V
Storage Temperature Range
R, RM, RT Packages . . . . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8601/AD8602 . . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
R, RM, RT Packages . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . . . 300°C
ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 kV HBM


-3dB Bandwidth 8.4MHz
Slew Rate 6V/s
Vos 500V
Ib 200fA
Input Noise (nV/rtHz) 18nV/rtHz
Vcc-Vee Supply (V) 2.7 to 6
Iq per Amplifier 1.2mA
# OpAmps per Pkg 1
Operating Temp Range -40 to +125
Packages SOT





Description

The AD8601 and AD8602 are single and dual rail-to-rail input and output single supply amplifiers featuring very low offset voltage and wide signal bandwidth. These amplifiers AD8601 and AD8602 use a new, patented trimming technique that achieves superior performance without laser trimming. All are fully specified to operate from 3 V to 5 V single supply. The combination of low offsets, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, diode amplifiers, shunt current sensors, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. For the most cost-sensitive applications the D grades offer this ac performance with lower dc precision at a lower price point. Applications for these amplifiers AD8601 and AD8602 include audio amplification for portable devices, portable phone headsets, bar code scanners, portable instruments, and multipole filters.
