AD8599

Supply Voltage ................. ±18 V
Input Voltage ............... GND to VDD
Differential Input Voltage .............±1 V
Output Short-Circuit to GND Indefinite Storage
Temperature Range ..........−65 to +150
Operating Temperature Range .... −40 to +125
Lead Temperature Range (Soldering 60 sec) .. 300
Junction Temperature .............. 150

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The AD8599 is a dual, very low noise, low distortion opera-tional amplifier ideal for use as a preamplifier. The low noise of 1 nV/Hz and low harmonic distortion of −105 dB (or better) at audio bandwidths give the AD8599 the wide dynamic range necessary for preamps in audio, medical, and instrumentation applications. The AD8599's excellent slew rate of 16 V/s and 10 MHz gain bandwidth make it highly suitable for medical applications. The low distortion and settling time of the AD8599 make it ideal for buffering of high resolution data converters.

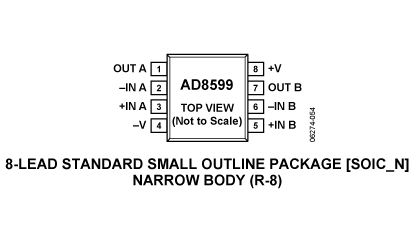

The AD8599 is available in an 8-Lead SOIC package and is specified over the −40°C to +125°C temperature range.
