AD8569

Features:

Single-Supply Operation: 4.5 V to 16 V
Input Capability Beyond the Rails
Rail-to-Rail Output Swing
Continuous Output Current: 35 mA
Peak Output Current: 250 mA
Offset Voltage: 10 mV Max
Slew Rate: 6 V/s
Stable with 1 F Loads
Supply Current





Application

LCD Reference Drivers
Portable Electronics
Communications Equipment

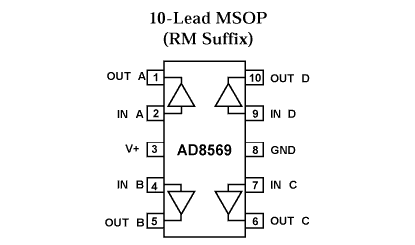

Pinout






Specifications

Supply Voltage (V_S) . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . .-0.5 V to +0.5 V_S
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .V
Storage Temperature Range . . . . . . . . . . ..-65 to +150
Operating Temperature Range . . . . . . . . . . .-40 to +85
Junction Temperature Range . . . . . . . . . .. .-65 to +150
Lead Temperature Range (Soldering, 60 sec) . . . . . . .300






Description

The AD8568, AD8569, and AD8570 are low-cost single-supply buffer amplifiers with rail-to-rail input and output capability. They are optimized for LCD monitor applications and built on an advanced high-voltage CBCMOS process. The AD8568 includes two buffers, the AD8569 includes four buffers, and the AD8570 includes eight buffers.

These LCD buffers have high slew rates, 35 mA continuous output drive, and high capacitive load drive capability. They have wide supply range and offset voltages below 10 mV.

The AD8568, AD8569, and AD8570 are specified over the -40 to +85 temperature range. They are available on tape and reel, with the AD8568 packaged in a 6-lead SOT-23, the AD8569 in a 10-lead MSOP, and the AD8570 in a 32-lead LFCSP.
