Features:

Single Supply Operation: +2.7 V to +5.5 V
Low Supply Current: 45 A/Amplifier
Wide Bandwidth: 1 MHz
No Phase Reversal
Low Input Currents: 4 pA
Unity Gain Stable
Rail-to-Rail Input and Output





Application

ASIC Input or Output Amplifier
Sensor Interface
Piezo Electric Transducer Amplifier
Medical Instrumentation
Mobile Communication
Audio Output
Portable Systems





Pinout

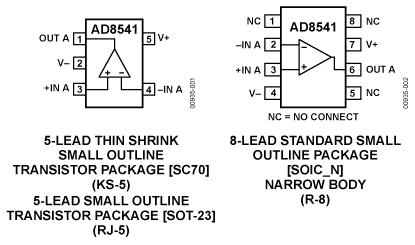

AD8541 Diagram




Specifications

-3dB Bandwidth 1MHz
Slew Rate 0.92V/s
Vos 1mV
Ib 4pA
Input Noise (nV/rtHz) 38nV/rtHz
Vcc-Vee Supply (V) 2.5 to 6
Iq per Amplifier (max) 65A
# OpAmps per Pkg 1
Operating Temp Range -40 to +125
Packages SC70,SOIC,SOT


ABSOLUTE MAXIMUM RATINGS1
Supply Voltage(V S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . +6 V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage2 . . . . . . . . . . . . . . . . . . . .. . . ±6 V
Storage Temperature Range . . . . . . . . . 65°C to +150°C
Operating Temperature Range . . . . . . . . 40°C to +125°C
Junction Temperature Range . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . .+300°C






Description

The AD8541/AD8542/AD8544 are single, dual, and quad rail-to-rail input and output single-supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a

The AD8541/AD8542/AD8544 are single, dual and quad railto- rail input and output single supply amplifiers featuring very low supply current and 1 MHz bandwidth. All are guaranteed to operate from a +2.7 V single supply as well as a +5 V supply. These parts provide 1 MHz bandwidth at low current consumption of 45 A per amplifier. Very low input bias currents enable the AD8541/AD8542/AD8544 to be used for integrators, photodiode amplifiers, piezo electric sensors and other applications with high source impedance. Supply current is only 45 A per amplifier, ideal for battery operation. Rail-to-rail inputs and outputs are useful to designers buffering ASICs in single supply systems. The AD8541/AD8542/AD8544 are optimized to maintain high gains at lower supply voltages, making them useful for active filters and gain stages.
The AD8541/AD8542/AD8544 are specified over the extended industrial (40°C to +125°C) temperature range. The AD8541 is available in 8-lead SO and 5-lead SOT-23 packages. The AD8542 is available in 8-lead SO, 8-lead MSOP, and 8-lead TSSOP surface mount packages. The AD8544 is available in 14-lead narrow SO-14 and 14-lead TSSOP surface mount packages.
All TSSOP, MSOP, and SOT versions are available in tape and reel only.
