AD8527

Features: -Single Supply Operation: 1.8 V to 6 V-Space-Saving SOT-23,SOIC Packaging-Wide Bandwidth: 7 MHz @ 5 V-Low Offset Voltage: 3.5 mV Max-Rail-to-Rail Output Swing and Rail-to-Rail Input-8 V/s Slew Rate-Only 900 A Supply Current @ 5 V Application-Portable Communications-Portable Phones-Senso...

product image

AD8527 Picture
See larger image
SeekIC No. : 004272410 Detail

AD8527: Features: -Single Supply Operation: 1.8 V to 6 V-Space-Saving SOT-23,SOIC Packaging-Wide Bandwidth: 7 MHz @ 5 V-Low Offset Voltage: 3.5 mV Max-Rail-to-Rail Output Swing and Rail-to-Rail Input-8 V/s ...

AD8527 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8527
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

-Single Supply Operation: 1.8 V to 6 V
-Space-Saving SOT-23,SOIC Packaging
-Wide Bandwidth: 7 MHz @ 5 V
-Low Offset Voltage: 3.5 mV Max
-Rail-to-Rail Output Swing and Rail-to-Rail Input
-8 V/s Slew Rate
-Only 900 A Supply Current @ 5 V





Application

-Portable Communications
-Portable Phones
-Sensor Interface
-Active Filters
-PCMCIA Cards
-ASIC Input Drivers
-Wearable Computers
-Battery-Powered Devices
-New Generation Phones
-Personal Digital Assistants

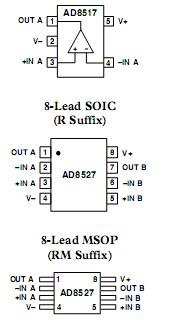

Pinout

Connection Diagram




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . 6 V
Input Voltage2. . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Differential Input Voltage . . . . . . . . . . .. . . . . . . . . . . ±0.6 V
Internal Power Dissipation
SOT-23 (RT) . . . . . . . . . . .... . See Thermal Resistance Chart
SOIC (R) . . . . . . . . . . . . .... . . See Thermal Resistance Chart
µSOIC (RM) . . . . . . . . . . ..... . See Thermal Resistance Chart
Output Short-Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . . ....... Indefinite for TA< +40°C
Storage Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Operating Temperature Range
AD8517, AD8527 . . . . . . . . . . . . . . . . . . 40°C to +125°C
Junction Temperature Range
R, RM and RT Packages . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . . . 300°C

-3dB Bandwidth 7MHz
Slew Rate 8V/s
Vos 1.3mV
Ib 450nA
Input Noise (nV/rtHz) 15nV/rtHz
Vcc-Vee Supply (V) 1.8 to 6
Iq per Amplifier 1.2mA
# OpAmps per Pkg 2
Operating Temp Range -40 to +125
Packages SOIC,SOP





Description

The AD8517 brings precision and bandwidth to the SOT-23-5 package even at single supply voltages as low as 1.8 V. The small package makes it possible to place the AD8517 next to sensors, reducing external noise pickup. The AD8527 dual amplifier is offered in the space-saving MSOP package.

The AD8517 and AD8527 are rail-to-rail input and output bipolar amplifiers with a gain bandwidth of 7 MHz and typical voltage offset of 1.3 mV from a 1.8 V supply. The low supply current makes these parts ideal for battery-powered applications. The 8 V/µs slew rate makes the AD8517/AD8527 a good match for driving ASIC inputs, such as voice codecs.

The AD8517/AD8527 is specified over the extended industrial(40°C to +125°C) temperature range. The AD8517 single is available in 5-lead SOT-23 surface-mount packages. The dual AD8527 is available in 8-lead SOIC and MSOP packages.
