Features:

·Replaces Hybrid Amplifiers in Many Applications


Pinout

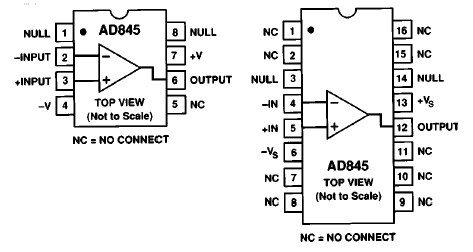

  Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Internal Power Dissipation2
Plastic Mini-DIP . . . . . . . . . . . . . . . . . . . . . . . . .. . . 1.6 Watts
Cerdip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.4 Watts
16-Pin SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 Watts
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . + VS
Output Short-Circuit Duration . . . . . . . . . . . . . . . . .. Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . +VS and VS
Storage Temperature Range
Q . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. ..  . .65 to +150
N, R . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .. . .65 to +125
Lead Temperature Range (Soldering 60 sec) . . . . . . . . +300



Description

The AD845 is a fast, precise, N channel JFET input, monolithic operational amplifier. It is fabricated using Analog Devices' complementary bipolar (CB) process. Advanced laser-wafer trimming technology enables the very low input offset voltage and offset voltage drift performance to be realized. This precision, when coupled with a slew rate of 100 V/s, a stable unity-gain bandwidth of 16 MHz, and a settling time of 350 ns 0.01%-while driving a parallel load of 100 pF and 500 - represents a combination of features unmatched by any FET input IC amplifier. The AD845 can easily be used to upgrade many existing designs which use BiFET or FET input hybrid amplifiers and, in some cases, those which use bipolar input op amps.

The AD845 is ideal for use in applications such as active filters, high speed integrators, photo diode preamps, sample-and-hold amplifiers, log amplifiers, and in buffering A/D and D/A converters. The 250 mV max input offset voltage makes offset nulling unnecessary in many applications. The common-mode rejection ratio of 110 dB over a ±10 V input voltage range represents exceptional performance for a JFET input high speed op amp. This, together with a minimum open-loop gain of 250 V/mV ensures that 12-bit performance is achieved, even in unity-gain buffer circuits.

The AD845 conforms to the standard op amp pinout except that offset nulling is to V+. The AD845J and AD845K grade devices are available specified to operate over the commercial 0 to +70 temperature range. AD845A and AD845B devices are specified for operation over the 40 to +85 industrial temperature range. The AD845S is specified to operate over the full military temperature range of 55 to +125. Both the industrial and military versions are available in 8-pin cerdip packages. The commercial version is available in an 8-pin plastic
