AD8387

Features: High accuracy, high-resolution voltage outputs1 mV channel matching12-bit input resolutionLaser-trimmed outputsFast settling, high voltage drive35 ns settling time to 0.25% into 150 pF loadSlew rate 420 V/sOutputs to within 1.3 V of supply railsHigh update ratesFast, 110 MHz clockProgram...

product image

AD8387 Picture
See larger image
SeekIC No. : 004272266 Detail

AD8387: Features: High accuracy, high-resolution voltage outputs1 mV channel matching12-bit input resolutionLaser-trimmed outputsFast settling, high voltage drive35 ns settling time to 0.25% into 150 pF loa...

AD8387 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8387
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High accuracy, high-resolution voltage outputs
1 mV channel matching
12-bit input resolution
Laser-trimmed outputs
Fast settling, high voltage drive
35 ns settling time to 0.25% into 150 pF load
Slew rate 420 V/s
Outputs to within 1.3 V of supply rails
High update rates
Fast, 110 MHz clock
Programmable video reference (brightness) and
full-scale (contrast) output levels
Flexible logic
INV bit reverses polarity of video signal
R/L reverses loading order of data
ISW selects frame/row or column/dot inversion
DSW selects single or dual data bus mode
Output short-circuit protection
3.3 V logic, 11 V to 18 V analog supplies
Available in 80-lead, 12 mm * 12 mm, TQFP E-pad




Application

LCD microdisplay driver

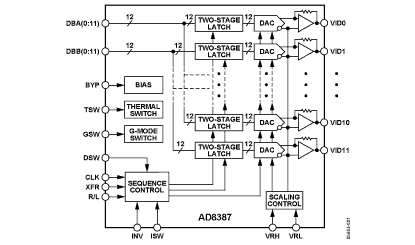

Pinout

AD8387 Diagram




Specifications

Parameter Rating
Supply Voltages
AVCCx − AGNDx
DVCC − DGND
Input Voltages
Maximum Digital Input Voltage
Minimum Digital Input Voltage
Maximum Analog Input Voltage
Minimum Analog Input Voltage
Internal Power Dissipation1
TQFP E-Pad @ TA = 25°C
Operating Temperature Range
Storage Temperature Range
Lead Temperature Range (Soldering 10 sec)		 18 V
4.5 V
DVCC + 0.5 V
DGND − 0.5 V
AVCC + 0.5 V
AGND − 0.5 V
4.38 W
0°C to 85°C
−65°C to +125°C
300°C





Description

The AD8387 DecDriver provides dual, fast latched, 12-bit decimating input, which drives 12 high voltage outputs.
Twelve-bit input words are loaded into 12 separate high speed, bipolar DACs sequentially. Flexible digital input format llows more than one AD8387 to be used in parallel for higher resolution displays. The output signal can be adjusted or dc reference, signal inversion, and contrast for maximum flexibility.

The AD8387 is fabricated on ADI's fast bipolar, 26 V XFCB process, providing fast input logic, bipolar DACs with rimmed accuracy and fast settling, high voltage, precision drive amplifiers on the same chip.

The AD8387 dissipates 1.34 W nominal static power. The AD8387 is offered in an 80-lead TQFP E-pad package and perates over the commercial temperature range of 0°C to +85°C.
