AD8383

High voltage drive to within 1.3 V of supply rails Output short-circuit protection High update rates Fast, 100 Ms/s, 10-bit input data update rate Low  static power dissipation: 0.7 W Includes STBY  function Voltage-controlled video reference (brightness)  and full-scale (contrast) output levels INV bit  reverses  polarity of video signal 3.3 V logic,  9 V  to 18 V analog  supplies High accuracy  voltage  outputs Laser trimming  eliminates the  need for  adjustments Flexible logic STSQ/XFR  allow  parallel AD8383 operation at various resolutions Fast  settling into capacitive loads 30 ns settling time to  0.25%  into 150 pF load Slew rate 460 V/s Available  in 48-lead 7 mm * 7 mm LFCSP package

LCD analog column driver

The AD8383 provides a fast, 10-bit latched decimating digital input that drives six high voltage outputs. 10-bit input words are sequentially loaded into six separate, high speed, bipolar DACs. Flexible digital input format allows several AD8383s to be used in parallel for higher resolution displays. STSQ synchronizes sequential input loading, XFR controls synchronous output updating, and R/L controls the direction of loading as either left-to-right or right-to-left. Six channels of high voltage output drivers drive to within 1.3 V of the rail. For maximum flexibility, the output signal can be adjusted for dc reference, signal inversion.

The AD8383 is fabricated on the 26 V, fast bipolar XFHV process developed by Analog Devices, Inc. This process provides fast input logic, bipolar DACs with trimmed accuracy and fast settling, high voltage, precision drive amplifiers on the same chip.

The AD8383 dissipates 0.7 W nominal static power. The STBY pin reduces power to a minimum with fast recovery.

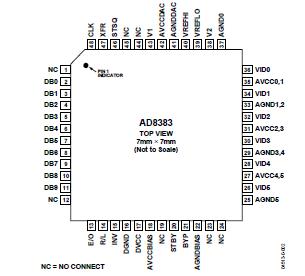

The AD8383 is offered in a 48-lead, 7 mm × 7 mm × 0.85 mm LFCSP package and operates over the commercial temperature range of 0°C to 85°C.
