AD8302

Supply Voltage V_S . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
PSET, MSET Voltage . . . . . . . . . . . . . . . . . . . . . . VS + 0.3 V
INPA, INPB Maximum Input . . . . . . . . . . . . . . . . . . . 3 dBV
Equivalent Power Re. 50 Ω . . . . . . . . . . . . . . . . . . 10 dBm
_JA² . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C/W
Maximum Junction Temperature . . . . . . . . . . . .. . . . . 125°C
Operating Temperature Range . . . . . . . .. . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Lead Temperature Range (Soldering 60 sec) . . . . .. . . 300°C
NOTE
1Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 2JEDEC 1S Standard (2-layer) board data.

The AD8302 is a fully integrated RF IC for measuring amplitude and the phase between two independent input signals. The device

The AD8302 is a fully integrated system for measuring gain/loss and phase in numerous receive, transmit, and instrumentation applications. It requires few external components and a single supply of 2.7 V5.5 V. The ac-coupled input signals can range from 60 dBm to 0 dBm in a 50 Ω system, from low frequencies up to 2.7 GHz. The outputs provide an accurate measurement of either gain or loss over a ±30 dB range scaled to 30 mV/dB, and of phase over a 0°180° range scaled to 10 mV/degree. Both subsystems have an output bandwidth of 30 MHz, which may optionally be reduced by the addition of external filter capacitors. The AD8302 can be used in controller mode to force the gain and phase of a signal chain toward predetermined setpoints.

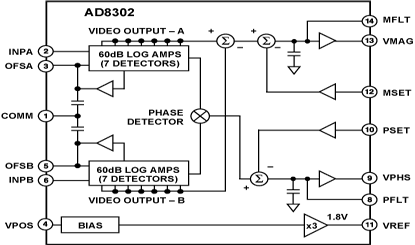

The AD8302 comprises a closely matched pair of demodulating logarithmic amplifiers, each having a 60 dB measurement range. By taking the difference of their outputs, a measurement of the magnitude ratio or gain between the two input signals is available. These signals may even be at different frequencies, allowing the measurement of conversion gain or loss. The AD8302 may be used to determine absolute signal level by applying the unknown signal to one input and a calibrated ac reference signal to the other. With the output stage feedback connection disabled, a comparator may be realized, using the setpoint pins MSET and PSET to program the thresholds.

The signal inputs are single-ended, allowing them to be matched and connected directly to a directional coupler. Their input impedance is nominally 3 kΩ at low frequencies.

The AD8302 includes a phase detector of the multiplier type, but with precise phase balance driven by the fully limited signals appearing at the outputs of the two logarithmic amplifiers. Thus, the phase accuracy measurement is independent of signal level over a wide range.

The phase and gain output voltages are simultaneously available at loadable ground referenced outputs over the standard output range of 0 V to 1.8 V. The output drivers can source or sink up to 8 mA. A loadable, stable reference voltage of 1.8 V is available for precise repositioning of the output range by the user. In controller applications, the connection between the gain output pin VMAG and the setpoint control pin MSET is broken. The desired setpoint is presented to MSET and the VMAG control signal drives an appropriate external variable gain device. Likewise, the feedback path between the phase output pin VPHS and its setpoint control pin PSET may be broken to allow operation as a phase controller.

The AD8302 is fabricated on Analog Devices' proprietary, high performance 25 GHz SOI complementary bipolar IC process. It is available in a 14-lead TSSOP package and operates over a 40°C to +85°C temperature range. An evaluation board is available.
