AD827

Features:

·HIGH SPEED
·50 MHz Unity Gain Stable Operation
·300 V/ms Slew Rate
·120 ns Settling Time
·Drives Unlimited Capacitive Loads
·EXCELLENT VIDEO PERFORMANCE
·0.04% Differential Gain @ 4.4 MHz
·0.198 Differential Phase @ 4.4 MHz
·GOOD DC PERFORMANCE
·2 mV max Input Offset Voltage
·15 mV/8C Input Offset Voltage Drift
·Available in Tape and Reel in Accordance with
·EIA-481A Standard
·LOW POWER
Only 10 mA Total Supply Current for Both Amplifiers
65 V to 615 V Supplies

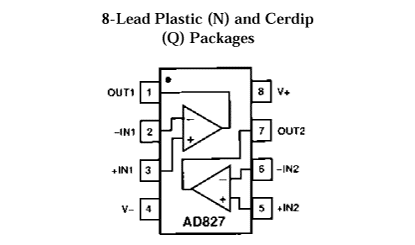

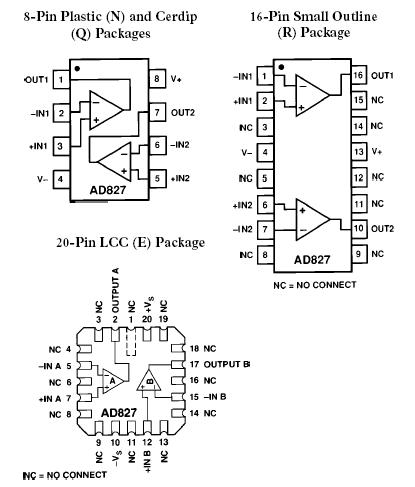

Pinout








Specifications



Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . ±18 V
Internal Power Dissipation2
Plastic (N) Package (Derate at 10 mW/) . . . . . . .. .. . 1.5 W
Cerdip (Q) Package (Derate at 8.7 mW/) . . . . . . .. .. 1.3 W
Small Outline (R) Package (Derate at 10 mW/) . .. .. 1.5 W
LCC (E) Package (Derate at 6.7 mW/) . . . . . . . . .. .. 1.0 W
Input Common Mode Voltage . . . . . . . . . . . . . . . . . . . . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . 6 V
Output Short Circuit Duration3 . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range (N, R) . . . . . . . 65 to +125
Storage Temperature Range (Q) . . . . . . . . . 65 to +150
Operating Temperature Range
AD827J . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 0 to +70
AD827A . . . . . . . . . . . . . . . . . . . . . . . . . ... . . 40 to +85
AD827S . . . . . . . . . . . . . . . . . . . . . . . . .. . .55 to +125
Lead Temperature Range
(Soldering to 60 sec) . . . . . . . . . . . . . . . . . .. .. . . . . . +300




Description

The AD827 is a dual version of Analog Devices' industrystandard AD847 op amp. Like the AD847, it provides high speed, low power performance at low cost. The AD827 achieves a 300 V/ms slew rate and 50 MHz unity-gain bandwidth while consuming only 100 mW when operating from ±5 volt power supplies. Performance is specified for operation using ±5 V to ±15 V power supplies.

The AD827 offers an open-loop gain of 3,500 V/V into 500 W loads. It also features a low input voltage noise of 15 nV/, and a low input offset voltage of 2 mV maximum. Commonmode rejection ratio is a minimum of 80 dB. Power supply rejection ratio is maintained at better than 20 dB with input frequencies as high as 1 MHz, thus minimizing noise feedthrough from switching power supplies.
The AD827 is also ideal for use in demanding video applications, driving coaxial cables with less than 0.04% differential gain and 0.19° differential phase errors for 643 mV p-p into a 75 W reverse terminated cable.

The AD827 is also useful in multichannel, high speed data conversion systems where its fast (120 ns to 0.1%) settling time is of importance. In such applications, the AD827 serves as an input buffer for 8-bit to 10-bit A/D converters and as an output amplifier for high speed D/A converters.
