Product Details

Description

Features:

High Speed
41 MHz, 3 dB Bandwidth
125 V/ms Slew Rate
80 ns Settling Time
Input Bias Current of 20 pA and Noise Current of
10 fAHz
Input Voltage Noise of 12 nVHz
Fully Specified Power Supplies: 65 V to 615 V
Low Distortion: 76 dB at 1 MHz
High Output Drive Capability
Drives Unlimited Capacitance Load
50 mA Min Output Current
No Phase Reversal When Input Is at Rail
Available in 8-Lead SOIC

Application

CCD
Low Distortion Filters
Mixed Gain Stages
Audio Amplifier
Photo Detector Interface
ADC Input Buffer
DAC Output Buffer

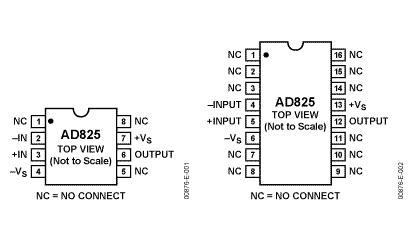

Pinout

AD825 Diagram

Specifications

-3dB Bandwidth	46MHz
Slew Rate	140V/s
Vos	1mV
Ib	10pA
Input Noise (nV/rtHz)	12nV/rtHz

Vcc-Vee Supply (V)	10 to 36
Iq per Amplifier	7.2mA
# OpAmps per Pkg	1
Operating Temp Range	-40 to +85
Packages	SOIC

Supply Voltage . . . . . . . . . . . . . . . . ...... . . . . .... . . . . . . . . . . ±18 V
Internal PowerÊ Dissipation²
Small Outline (R) . . . . . . . . . . . . . . . ........... . See Derating Curves
Input Voltage (Common Mode) . . . . . . ........... . . . . . . . . . . . . . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . .......... . . . . . . . . . ±VS
Output Short Circuit Duration . . . . . . ............ . See Derating Curves
Storage Temperature Range R . . . . . . . . . . .......... 65 to +125
Operating Temperature Range . . . . . . . . . . ............ 40 to +85
Lead Temperature Range (SolderingÊ 10 sec) . . . . . ......... . .+300

Description

The AD825 is a superbly optimized operational amplifier for high speed, low cost and dc parameters, making it ideally suited for a broad range of signal conditioning and data acquisition applications. The ac performance, gain, bandwidth, slew rate and drive capability are all very stable over temperature. The AD825 also maintains stable gain under varying load conditions.

The unique input stage has ultralow input bias current and ultralow input current noise. Signals that go to either rail on this high performance input do not cause phase reversals at the output. These features make the AD825 a good choice as a buffer for MUX outputs, creating minimal offset and gain errors.

The AD825 is fully specified for operation with dual ±5 V and ±15 V supplies. This power supply flexibility, and the low supply current of 6.5 mA with excellent ac characteristics under all supply conditions, makes the AD825 well suited for many demanding applications.
