AD823

Single Supply Operation Output Swings Rail to Rail Input Voltage Range Extends Below Ground Single Supply Capability from +3 V to +36 V High Load Drive Capacitive Load Drive of 500 pF, G= +1 Output Current of 15 mA, 0.5 V from Supplies Excellent AC Performance on 2.6 mA/Amplifier 3 dB Bandwidth of 16 MHz,G=+1 350 ns Settling Time to 0.01% (2 V Step) Slew Rate of 22 V/s Good DC Performance 800 V Max Input Offset Voltage 2 V/Offset Voltage Drift 25 pA Max Input Bias Current Low Distortion 108 dBc Worst Harmonic@20 kHz Low Noise 16 nV/Hz@10 kHz No Phase Inversion with Inputs to the Supply Rails

Battery Powered Precision Instrumentation Photodiode Preamps Active Filters 12- to 16-Bit Data Acquisition Systems Medical Instrumentation

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...................... +36 V
Internal Power Dissipation2
Plastic Package (N) . . . . . . . . . . . . . . . . . . . . . . . ......................... 1.3 Watts
Small Outline Package (R) . . . . . . . . . . . . . . . . . . ......................... 0.9 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . ....................... . ±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . ..................... ±1.2 V
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . . . . .......................Observe Power Derating Curves
Storage Temperature Range N, R . . . . . . . . .................65°C to +125°C
Operating Temperature Range . . . . . . . . . . . . ...............40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . .................. +300°C

NOTES
¹Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
²Specification is for device in free air: 8-Pin Plastic Package: JA = 90°C/Watt 8-Pin SOIC Package: JA = 160°C/Watt

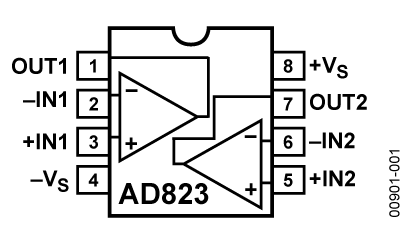

The AD823 is a dual precision, 16 MHz, JFET input op amp that can operate from a single supply of +3.0 V to +36 V, or dual supplies of ±1.5 V to ±18 V. It has true single supply capability with an input voltage range extending below ground in single supply mode. Output voltage swing extends to within 50 mV of each rail for IOUT100 mA providing outstanding output dynamic range.

Offset voltage of 800 mV max, offset voltage drift of 2 mV/°C, input bias currents below 25 pA and low input voltage noise provide dc precision with source impedances up to a Gigohm. 16 MHz, 3 dB bandwidth, 108 dB THD @ 20 kHz and 22 V/ms slew rate are provided with a low supply current of 2.6 mA per amplifier. The AD823 drives up to 500 pF of direct capacitive load as a follower, and provides an output current of 15 mA, 0.5 V from the supply rails. This allows the amplifier to handle a wide range of load conditions.

This combination of ac and dc performance, plus the outstanding load drive capability results in an exceptionally versatile amplifier for applications such as A/D drivers, high-speed active filters, and other low voltage, high dynamic range systems.
