Product Details

Description



Features:

High accuracy dc performance
90 dB CMRR (G = 1), typ
4pA typ input bias current
1 nA max input bias current over temperature
2 uV/°C typ input offset voltage drift
Excellent ac specificatons
80 dB min CMRR to 10 kHz ( G = 1), typ
1.75 MHz 3dB bandwidth (G=1)
Low Settling Time
Versatile
Rail-to-rail output
700 A quiscent supply current (typ)
Available in space-saving MSOP package
Gain set with one resistor (gain range 1 to 1000)
±2.3 V to ±18 V dual supplies
+4.6 V to +36 V single supply
Specified over 40°C to +85°C





Application

Medical instrumentation
Precision data acquisition systems
Transducer interfaces

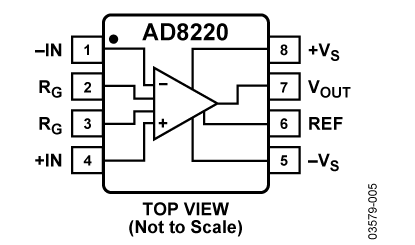

Pinout

  Connection Diagram

AD8220 Diagram




Specifications

Parameter Rating
Supply Voltage
Internal Power Dissipation
Output Short Circuit Current
Input Voltage (Common-Mode)
Differential Input Voltage
Storage Temperature
±18 V


±VS
±VS
−65°C to +150°C


Single/Dual Supply Single/Dual
Voltage Supply (Vmax) +36V
Gain Setting Method Resistor
Gain Range (min to max) 1000
Bandwidth G=10 (kHz typ) 800kHz
CMRR (dB) 100dB
Vnoise RTI 1-10 Hz Vp-p 0.8V p-p
Temperature Range -40 to +85
Gain Error (%) max +0.04%
Supply Current 750A
Package MSOP
Vosi (V) 125V





Description

The AD8220 is a gain programmable, high performance instru-mentation amplifier that draws a typical input bias current of 4pA and rejects high frequency common mode signals. The CMRR of instrumentation amplifiers on the market today falls off at 200 Hz. In contrast, the AD8220 maintains a CMRR of 80 dB over an extended frequency at G = 1. The combination of extremely high input impedance and high CMRR over frequency makes the AD8220 useful in applications such as patient monitoring where input impedance is high and high frequency disturbances must be rejected.

The rail to rail output, low power consumption and small MSOP package make this precision instrumentation amplifier AD8220 attractive for use in multi-channel applications.

Programmable gain affords the user design flexibility. A single resistor sets the gain from 1 to 1000. The AD8220 operates on both single and dual supplies and is well suited for situations where ±10 V input voltages are encountered. In addition its rail to rail output stage allows for maximum dynamic range when constrained by low single supply voltages.

Performance is specified over the entire industrial temperature range of 40°C to +85°C.
