AD8192

Features: 2 inputs, 1 output HDMI/DVI linksHDMI 1.3a receive and transmit compliant±7 kV HBM ESD on HDMI input pins4 TMDS channels per linkSupports 250 Mbps to 2.25 Gbps data rates and beyondSupports 25 MHz to 225 MHz pixel clocks and beyondFully buffered unidirectional inputs/outputsSwitchable 50...

product image

AD8192 Picture
See larger image
SeekIC No. : 004271920 Detail

AD8192: Features: 2 inputs, 1 output HDMI/DVI linksHDMI 1.3a receive and transmit compliant±7 kV HBM ESD on HDMI input pins4 TMDS channels per linkSupports 250 Mbps to 2.25 Gbps data rates and beyondSupport...

AD8192 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AD8192
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

2 inputs, 1 output HDMI/DVI links
HDMI 1.3a receive and transmit compliant
±7 kV HBM ESD on HDMI input pins
4 TMDS channels per link
Supports 250 Mbps to 2.25 Gbps data rates and beyond
Supports 25 MHz to 225 MHz pixel clocks and beyond
Fully buffered unidirectional inputs/outputs
Switchable 50 on-chip input terminations with programmable or automatic control on channel switch
Equalized inputs and pre-emphasized outputs
Low added jitter
Output disable feature for reduced power dissipation
Switched output termination for building of larger arrays
Bidirectional and cascadable DDC buffers (SDA/SCL)
DDC bus logic level translation (3.3 V, 5 V)
Bidirectional and cascadable CEC buffer with integrated pull-up resistors (27 k)
Hot plug detect pulse low on channel switch
Standards compatible: DVI, HDMI 1.3a, HDCP, I2C
Serial (I2C slave) control interface
56-lead, 8 mm * 8 mm LFCSP, RoHS-compliant package




Application

Front panel buffer for advanced television (HDTV) sets
Standalone HDMI switcher
Multiple input displays
Projectors
A/V receivers
Set-top boxes




Pinout

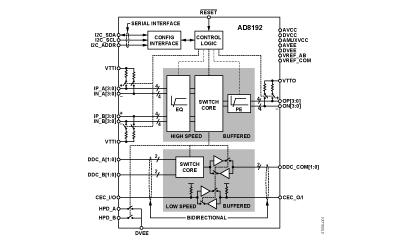

Connection Diagram

AD8192 Diagram




Specifications

Parameter
Rating
AVCC to AVEE
DVCC to DVEE
DVEE to AVEE
VTTI
VTTO
AMUXVCC
VREF_AB
VREF_COM
Internal Power Dissipation
High Speed Input Voltage
High Speed Differential Input Voltage
Low Speed Input Voltage
I2C Logic Input Voltage
Storage Temperature Range
Operating Temperature Range
Junction Temperature
ESD HBM Input Pins Only
ESD HBM All Other Pins
3.7 V
3.7 V
±0.3 V
AVCC + 0.6 V
AVCC + 0.6 V
5.5 V
5.5 V
5.5 V
2.41 W
AVCC − 1.4 V < VIN < AVCC + 0.6 V
2.0 V
DVEE − 0.3 V < VIN < AMUXVCC + 0.6 V
DVEE − 0.3 V < VIN < DVCC + 0.6 V
−65 to +125
−40 to +85
150
±7 kV
±1.5 kV

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.



Front Panel Buffer X
HDMI/DVI Input Channels 2
HDMI/DVI Output Channels 1
Input Equalization (dB) 12dB
Max Datarate (Gbps) 2.25Gbps
Max Resolution 1080p/UXGA
Output Pre-Emphasis (dB) 6dB
Package 56-LFCSP





Description

The AD8192 is a complete HDMI™/DVI link switch featuring equalized TMDS inputs and pre-emphasized TMDS outputs ideal for systems with long cable runs. The TMDS outputs can be set to a high impedance state to reduce the power dissipation and/or allow the construction of larger arrays using the wire-OR technique. The AD8192 includes bidirectional buffering for the DDC bus and CEC line, with integrated pull-up resistors for the CEC line. The AD8192 is available in a space-saving, 56-lead LFCSP surface-mount, lead-free plastic package specified to operate over the −40 to +85 temperature range.
