Product Details

Description



Application

Switching RGB in LCD and Plasma Displays
RGB Video Switchers and Routers

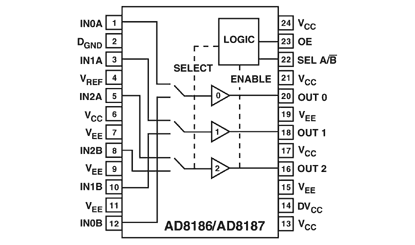

Pinout

AD8186 Diagram




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ...... . . . 5.5 V
DVCCto DGND. . . . . . . . . . . . . . . ... . . . . .............................. 5.5 V
DVCCto VEE............................................................................8.0 V
VCCto DGND............................................................................ 8.0 V
IN0A, IN0B, IN1A, IN1B, IN2A, IN2B, VREF. ..... .VEEVINVCC
SEL A/B, OE . . . . . . . . . . . . . . . . . . ..... .... . DGND VIN DVCC
Output Short Circuit Operation . . . . . . . . . . . . . . Indefinite
Storage Temperature Range . . . . . . . . . ....... ... 65ºC to +150ºC
Lead Temperature Range (Soldering 10 sec) . . . . ..... . . . . 300ºC



Sw/Mx Function x # (2:1) x 3
Interface Type Parallel
Available Packages SOP
Max Analog Signal Range ±1.2V
Ron (Ohms) n/a
Ron Match (Ohms) n/a
Cs (OFF) n/a
Cs, Cd (ON) n/a
Off Isolation (-dB) 84dB
Bandwidth 1GHz





Description

The AD8186 (G = +1) and AD8187 (G = +2) are high speed,single-supply, triple 2-to-1 multip lexers. They offer 3 dB large signal bandw idth of over 480 MHz along with a slew rate in excess of1500 V/µs. With better than 80 dB of all hostile crosstalk and95 dB OFF isolation, they are suited for many high speed appli-cations. The differential gain and differential phase error of 0.05% and 0.05°, along with 0.1 dB flatness to 85 MHz, make the AD8186 and AD8187 ideal for professional and component video multiplexing. They offer 4 ns switching time, making them an excellent choice for switching video signals while consuming less than 20mA on a single 5 V supply (100 mW).

Both devices AD8186 (G = +1) and AD8187 (G = +2)  have a high speed dis able feature that sets the outputs into a high impedance state. This allows the building of larger input arrayswhile minimizing OFF channel output loading. The devices are offered in a24-lead TSSOP package.
