AD8174

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12.6 V
Internal Power Dissipation2
AD8170 8-Lead Plastic (N) . . . . . . . . . . . . . . . . . . . . .1.3 Watts
AD8170 8-Lead Small Outline (R) . . . . . . . . . . . . . . . .0.9 Watts
AD8174 14-Lead Plastic (N) . . . . . . . . . . . . . . . . . . . .1.6 Watts
AD8174 14-Lead Small Outline (R) . . . . . . . . . . . . . . .1.0 Watts
Input Voltage (Common Mode) . . . . . . . . . . . . . . . . . . . . .  ±VS
Output Short Circuit Duration . Observe Power Derating Curves
Storage Temperature Range
N & R Packages . . . . . . . . . . . . . . . . . . . . . . . 65°C to +125°C
Lead Temperature Range (Soldering 10 sec) . . . . . . . . +300°C
NOTES
¹Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
²Specification is for device in free air: 8-Pin Plastic Package: q_JA = 90°C/Watt;
8-Pin SOIC Package: q_JA = 160°C/Watt; 14-Pin Plastic Package: q_JA = 90°C/Watt
14-Pin SOIC Package: q_JA = 120°C/Watt, where PD = (TJTA)/q_JA.

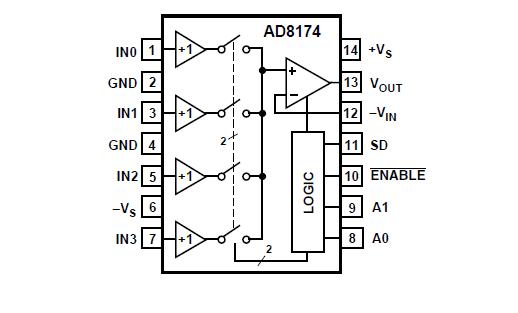

The AD8170(2:1) and AD8174(4:1) are very high speed buffered multiplexers. These multiplexers offer an internal current feedback output amplifier whose gain can be programmed via external resistors and is capable of delivering 50 mA of output current. They offer 3 dB signal bandwidth of 250 MHz and slew rate of greater than 1000 V/ms. Additionally, the AD8170 and AD8174 have excellent video specifications with low differential gain and differential phase error of 0.02% and 0.05° and 0.1 dB flatness out to 80 MHz. With a low 78 dB of crosstalk and better than 88 dB isolation, these devices are useful in many high speed applications. These are low power devices consuming only 9.7 mA from a ±5 V supply.

The AD8174 offers a high speed disable feature allowing the output to be put into a high impedance state for cascading stages so that the off channels do not load the output bus. Additionally, the AD8174 can be shut down (SD) when not in use to minimize power consumption (IS = 1.5 mA). These products will be offered in 8-lead and 14-lead PDIP and SOIC packages.
