Features:

·Two Video Amplifiers in One 8-Lead SOIC Package Optimized for Driving Cables in Video Systems Excellent Video Specifications (RL = 150 V):
Gain Flatness 0.1 dB to 40 MHz
0.02% Differential Gain Error
0.028 Differential Phase Error
·Low Power
Operates on Single +3 V Supply
5.5 mA/Amplifier Max Power Supply Current
·High Speed
145 MHz Unity Gain Bandwidth (3 dB)
1600 V/ms Slew Rate
·Easy to Use
50 mA Output Current
Output Swing to 1 V of Rails (150 V Load)






Application

·Video Line Driver
·Professional Cameras
·Video Switchers
·Special Effects





Pinout

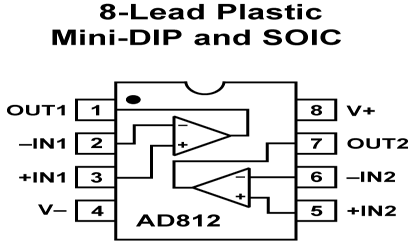

AD812 Diagram




Specifications

-3dB Bandwidth 145MHz
Slew Rate 425V/s
Vos 2mV
Ib 300nA
Input Noise (nV/rtHz) 3.5nV/rtHz
Vcc-Vee Supply (V) 2.4 to 36
Iq per Amplifier (max) 5.5mA
# OpAmps per Pkg 2
Operating Temp Range -40 to +85
Packages DIP,SOIC


Supply Voltage ±18 V
Internal Power Dissipation2
Plastic (N)
Small Outline (R)

1.3 Watts
0.9 Watts
Input Voltage (Common Mode) ±VS
Differential Input Voltage ±1.2 V
Output Short Circuit Duration Observe Power Derating Curves
Storage Temperature Range N, R 65 to +125
Operating Temperature Range 40 to +85
Lead Temperature Range (Soldering, 10 sec) +300

1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational section of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
2 Specification is for device in free air: 8-lead plastic package: JA = 90/Watt; 8-lead SOIC package: JA = 150/Watt.






Description

The AD812 is a low power, single supply, dual video amplifier. Each of the amplifiers have 50 mA of output current and are optimized for driving one back-terminated video load (150 W) each. Each amplifier is a current feedback amplifier and features gain flatness of 0.1 dB to 40 MHz while offering differential gain and phase error of 0.02% and 0.02°. This makes the AD812 ideal for professional video electronics such as cameras and video switchers.

The AD812 offers low power of 4.0 mA per amplifier max (VS = +5 V) and can run on a single +3 V power supply. The outputs of each amplifier swing to within one volt of either supply rail to easily accommodate video signals of 1 V p-p. Also, at gains of +2 the AD812 can swing 3 V p-p on a single +5 V power supply. All this is offered in a small 8-lead plastic DIP or 8-lead SOIC package. These features make this dual amplifier ideal for portable and battery powered applications where size and power is critical.

The outstanding bandwidth of 145 MHz along with 1600 V/ms of slew rate make the AD812 useful in many general purpose high speed applications where a single +5 V or dual power supplies up to ±15 V are available. The AD812 is available in the industrial temperature range of 40 to +85.
