Features: ·Two Fast 12-Bit ADCs·Four Input Channels·Simultaneous Sampling & Conversion·4 ms Throughput Time·Single Supply Operation·Selection of Input Ranges:610 V for AD7862-1062.5 V for AD7862-30 V to 2.5 V for AD7862-2·High Speed Parallel Interface·Low Power, 60 mW typ·Power Saving Mode, 50...
AD7862: Features: ·Two Fast 12-Bit ADCs·Four Input Channels·Simultaneous Sampling & Conversion·4 ms Throughput Time·Single Supply Operation·Selection of Input Ranges:610 V for AD7862-1062.5 V for AD7862...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Resolution (Bits) | 12bit |
T-Put Rate | 250kSPS |
# Chan | 4 |
Supply V | Single(+5) |
Pwr Diss (max) | 75mW |
Interface | Par |
Ain Range | Bip 10V,Bip 2.5V,Uni 2.5V |
SNR (dB) | 71dB |
Pkg Type | DIP,SOIC,SOP |
VDD to AGND | 0.3 V to +7 V |
VDD to DGND | 0.3 V to +7 V |
AGND to DGND | ±0.3 V |
Analog Input Voltage to AGND AD7862-10 AD7862-3 AD7862-2 |
±17 V ±7 V +7 V |
Reference Input Voltage to AGND | 0.3 V to VDD + 0.3 V |
Digital Input Voltage to DGND | 0.3 V to VDD + 0.3 V |
Digital Output Voltage to DGND | 0.3 V to VDD + 0.3 V |
Operating Temperature Range Commercial (A, B Version) Extended (S Version) |
40 to +85 55 to +125 |
Storage Temperature Range | 65 to +150 |
Junction Temperature | +150 |
Plastic DIP Package, Power Dissipation | 670 mW |
JA Thermal Impedance | 116/W |
Lead Temperature, (Soldering 10 sec) | +260 |
Ceramic DIP Package, Power Dissipation | 670 mW |
JA Thermal Impedance | 116/W |
Lead Temperature, (Soldering 10 sec) | +260 |
SOIC Package, Power Dissipation | 450 mW |
JA Thermal Impedance | 110/W |
Lead Temperature, Soldering Vapor Phase (60 sec) Infrared (15 sec) |
+215 +220 |
SSOP Package, Power Dissipation | 450 mW |
JA Thermal Impedance | 110/W |
Lead Temperature, Soldering Vapor Phase (60 sec) Infrared (15 sec) |
+215 +220 |

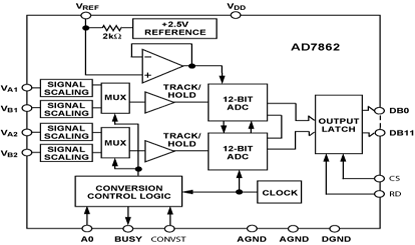

The AD7862 is a high speed, low power, dual 12-bit A/D
converter that operates from a single +5 V supply. The part
contains two 4 ms successive approximation ADCs, two track/
hold amplifiers, an internal +2.5 V reference and a high speed
parallel interface. There are four analog inputs that are grouped into two channels (A & B) selected by the A0 input. Each channel has two inputs (VA1 & VA2 or VB1 & VB2) that can be sampled and converted simultaneously thus preserving the relative phase information of the signals on both analog inputs. The part accepts an analog input range of ±10 V (AD7862-10), ±2.5 V (AD7862-3) and 02.5 V (AD7862-2). Overvoltage protection on the analog inputs for the part allows the input voltage to go to ±17 V, ±7 V or +7 V, respectively, without causing damage.
A single conversion start signal (CONVST) places both track/ holds into hold simultaneously and initiates conversion on both inputs. The BUSY signal indicates the end of conversion, and at this time the conversion results for both channels are available to be read. The first read after a conversion accesses the result from VA1 or VB1, while the second read accesses the reslt from VA2 or VB2, depending on whether the multiplexer select A0 is low or high, respectively. Data is read from the part via a 12-bit parallel data bus with standard CS and RD signals.
In addition to the traditional dc accuracy specifications such as linearity, full-scale and offset errors, the part is also specified for dynamic performance parameters including harmonic distortion and signal-to-noise ratio.
